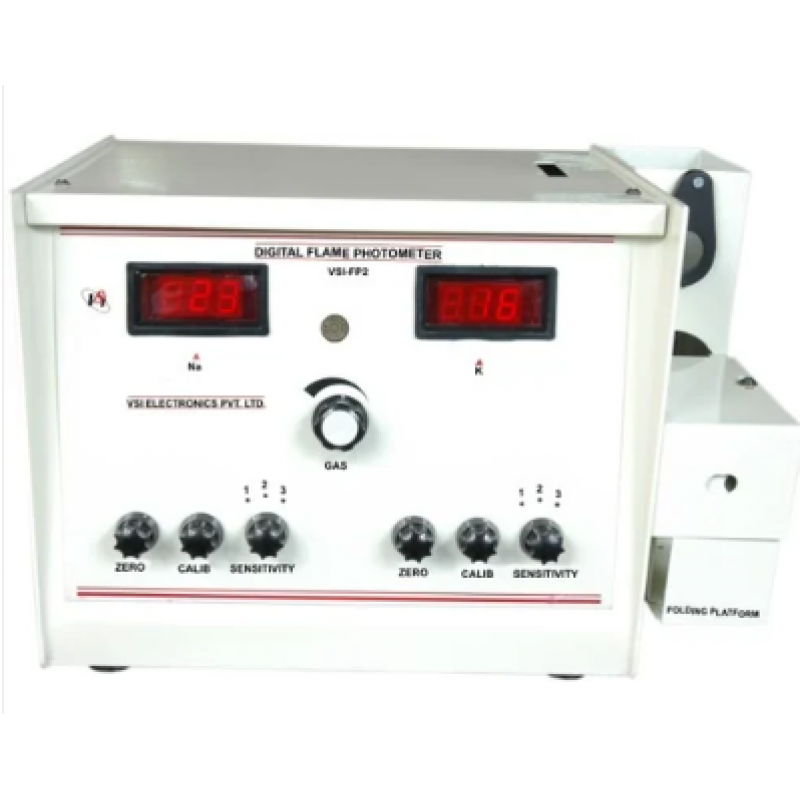

Digital Clinical Flame Photometer
Product Details:

Model Name/Number	Clinical Flame Photometer
Usage/Application	For determination of Sodium (Na), Potassium (K), Calcium (Ca) & Lithium (Li)
Display	Dual 21/2 Digit LED Display
Model	VSI-FP2
Application	Laboratory Use
Automation Grade	Manual
Brand	VSI
Filters	Two Filters Na & K in Model VSI-FP2
Flame System	LPG & Dry Oil free Air
Gas Control	LPG controlled by precision needle type regulator
Ignition System	Auto ignition // With external igniter
I Deal In	New Only
Sodium	YES
Potassium	YES
Country of Origin	Made in India
Accuracy	+-2% upto 100 meq. // +-5% above 100 meq.
Measurement System	Simultaneous measurement of 2 elements on dual LED Display

Digital Clinical Flame Photometer Model:'VSI-FP2' is a dual channel Flame Photometer used for simultaneous observation of Na and K in blood serum (Plasma) Urine and other type of biological fluids. It is an economical, reliable, rugged, most accurate and precise instrument suitable for measurement of Sodium (Na) and Potassium (K) with the filters mounted on the disc. Calcium and Lithium are optional. Technical Specifications : VSI-FP2   Main Unit VSI-FP2 Range Sodium (Na) : Serum 0-200 meq./l, Urine 0-200 meq./l Potassium (K) : Serum 0-10 meq./l Urine 0-100 meq./l Lithium (Lj) : Serum 0-2 meq./l (Optional) Calcium (Ca) : Urine 0-10 meq./l (Optional) Sensitivity     - Display Dual 2½ Digit LED Display Accuracy +-2% upto 100 meq. +-5% above 100 meq. Ignition System With External Igniter Measurement System Simultaneous measurement of 2 elements on dual LED Display Repeatability +-2 counts Detector Photocell/Photodiode Filters Narrow band interference glass filters Nebulizer Black bakelite or S.S., axial flow type Flame System LPG & Dry Oil free Air Combustion Gas LPG controlled by precision needle type regulator Warm-up Time 10 minutes Power Supply 230 V +-10%, 50 Hz AC, Built-in-Voltage Stabilizer
