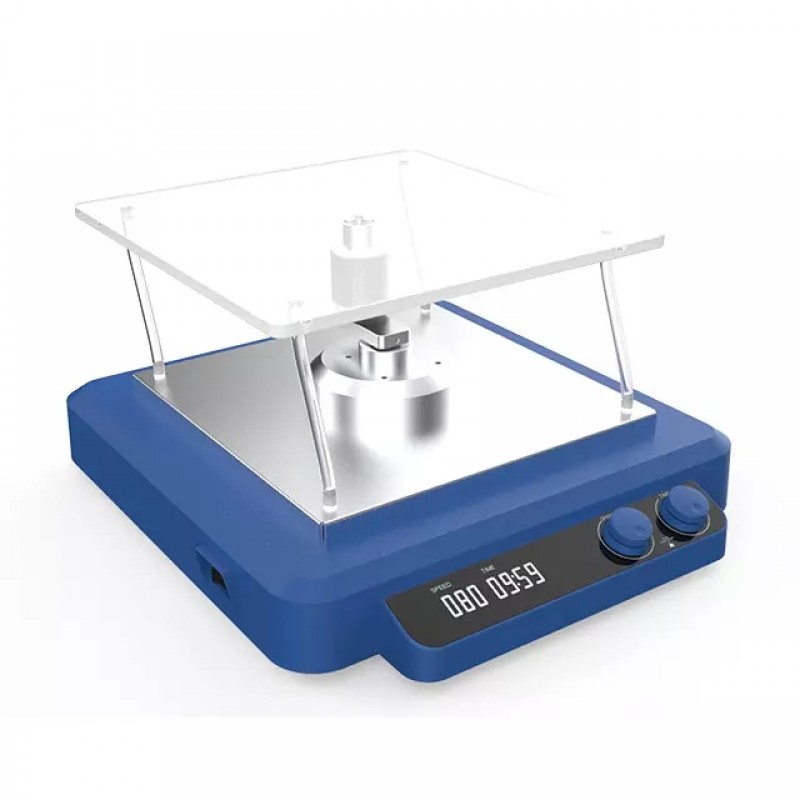

Digital 3D Rocker

Digital 3D Rocker

The variable speed 3D Rocker is ideal for generating the three-dimensional motion commonly preferred for molecular biology applications. A large platform with non-slip mat firmly secures the laboratory vessel like petri dishes in-place. The speed is adjustable from 10 rpm to 70 rpm providing undulating three-dimensional shaking motion, with 0°-8° adjustable tilt angle. Easy-to-read, independent LED displays for speed and time and independent dial controls allows for precise adjustment of speed and time.


Typical Applications:

●Ideal for generating the three-dimensional motion commonly preferred for molecular biology applications.


Features:

●LED display for easy-reading of speed and time simultaneously

● Continuous operation and timed operation in range of 0-99h59min are available

● Undulating three-dimensional shaking motion, with 0°-8° adjustable tilt angle

●Adjustable speed of 10–70rpm

● Max. Load capacity (with platform) is 5KG

●No-slip mat on the platform keeps the items in position during operation

●Ideal for generating the three-dimensional motion commonly preferred for molecular biology applications.


Specifications :

Model

SK420

Shaking motion

Three - dimensional shaking

Tilt angle [°]

0-8°

Max. load capacity (with platform) [kg]

5

Motor type

Brushless DC motor

Speed range [rpm]

10-70

Speed display

LED

Time display

LED

Time range [min]

0-99H59min

Operation type

Continuous / timing operation

Voltage [VAC]

100-240

Frequency [Hz]

50/60

Power[W]

35

Permissible ambient temperature [℃]

0-40

Permissible relative humidity [RH]

97%

Protection class acc. to DIN EN60529

IP42

Dimension (L x W x H) [mm]

442*400*210

Weight [kg]

9
