Eyepieces | PL10x/22 eyepieces (pair), high eyepoint, with rubber cup (on main head) and field number 20 (on discussion heads) |

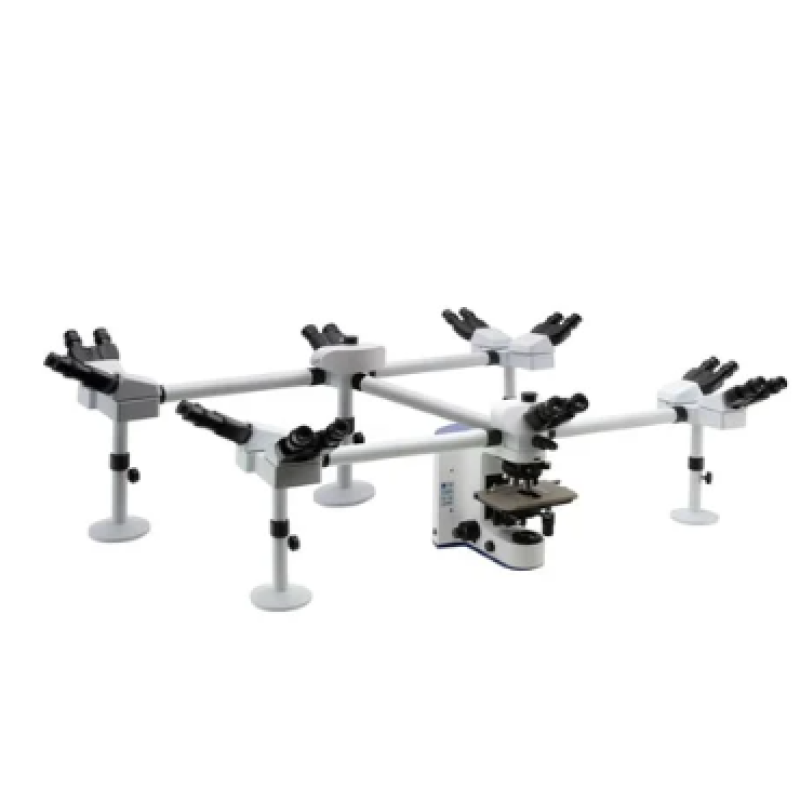

Head | Trinocular observation head (main head) and binocular (discussion heads), inclined 30° and rotatable 360°. Diopter adjustment on left eyepiece. Interpupillary adjustment 55-75 mm. Multi-viewing device (10 simultaneous observers). Discussion LED pointer (arrow) under the main head. |
Main Body | Main body with focus system and X-LED8 illumination, for general purposes |
Motorization | Choice of: Upgrade (controller) for any kind of motorization (stage, Z-axis, nosepiece, or all of them together) (must be added for any motorized configuration) Motorization of Z-axis |
Nosepiece | Choice of: Sextuple reversed nosepiece, for RMS objectives with DIC slot Sextuple motorized reversed nosepiece, for RMS objectives with DIC slot |
Objective Sets | IOS W-PLAN 4x, 10x, 20x, 40x, 60x, 100x
|
Stage | Choice of: Standard Mechanical Stage Rackless Mechanical Stage MPC (Mineral Solid Surface) Rackless Mechanical Stage Heating stage, with digital temperature controller Motorized mechanical Stage |
Focusing | Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob. |
Condenser | Choice of: 0.90/0.25 NA Swing-Out Condenser |
