DOUBLE DOOR AUTOCLAVE

A double door autoclave is fixed between two adjacent rooms. In such autoclaves, operator at one side puts samples inside the chamber and initiates sterilization process, after completion of sterilization, buzzer beeps and operator at other side, opens the door and removes the sterilized samples. Also known as pass through autoclaves, these sterilizers are especially used in cleanroom areas and where contaminant applications are prime requisite.

Note: in order to fix / install a double door autoclave, little alteration or modification in current location (place where autoclave to be installed) is required.

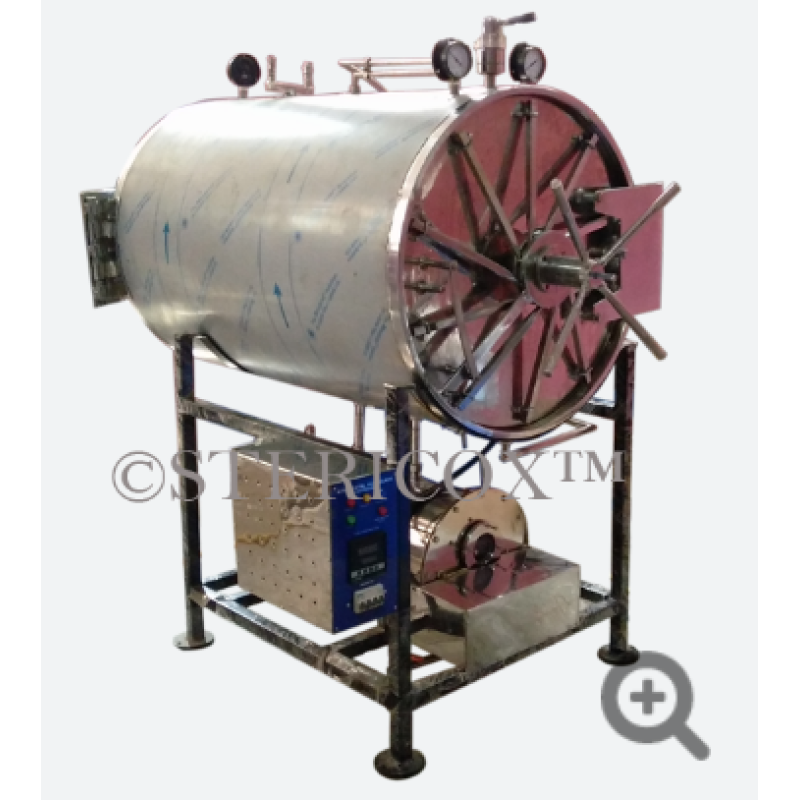

We have proven track record in designing pass through autoclaves for contaminant laboratories. Stericox™ double door autoclaves are horizontal, wall mounted sterilizers having doors at both sides. These autoclaves are constructed in both cylindrical and rectangular shapes as required. Other features such as printer, digital temperature controller, buzzer etc. are same as provided in horizontal autoclave. These machines are bespoke, cost effective and superior in performance. Availability of various options and fittings make these units finest choice in the current Indian market.

If you are looking to buy a double door autoclave for your laboratory, please provide us your specifications, your application details and choice of accessories you want in your autoclave. Our technical person will contact you, discuss your requirements and prepare a budgetary quote.

FEATURES & BENEFITS

• Cylindrical / Rectangular design
• Stainless steel interior and exterior
• ISI marked flange / immersion heating elements
• Working pressure 15 psi to 20 psi
• Standard temperature 121°C
• Silicon rubber door gasket
• Digital Temperature controller
• Digital Timer and alarm (buzzer)
• Automatic pressure control switch
• Reliable steam pressure gauges
• Vacuum breaker and steam trap valve
• Brass safety valves
• Viewing glass water level check
• Triple walled construction
• Automatic water level cut-off
• Powder coated / chrome plated MS Stand

OPTIONAL FEATURES & ACCESSORIES

• Working at 30 psi with 134°C
• PLC with HMI interface
• Complete SS 316 construction
• Doors at both sides
• Provision for vacuum drying
• Data logger with USB interface

STERICOX™ DOUBLE DOOR AUTOCLAVE (CYLINDRICAL)

Model No.	Dia. x Height (mm)	Volume (Liters)
STXDDAC075	400 x 600	75
STXDDAC138	400 x 1100	138
STXDDAC176	500 x 900	176
STXDDAC178	550 x 750	178
STXDDAC235	500 x 1200	235
STXDDAC339	600 x 1200	339
STXDDAC552	750 x 1200	552

STERICOX™ DOUBLE DOOR AUTOCLAVE (RECTANGULAR)

Model No.	W x H x D (mm)	Volume (Liters)
STXDDAR182	450 x 450 x 900	182
STXDDAR243	450 x 600 x 900	243
STXDDAR324	600 x 600 x 900	324
STXDDAR432	600 x 600 x 1200	432
STXDDAR540	600 x 750 x 1200	540
STXDDAR810	600 x 900 x 1500	810
STXDDAR1215	900 x 900 x 1500	1215
