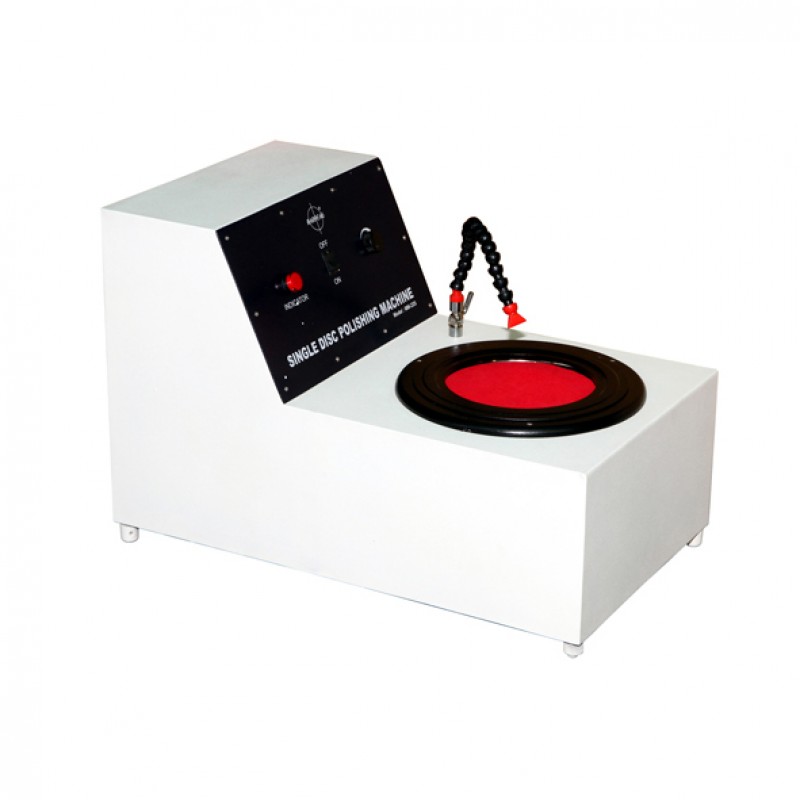

SINGLE DISC POLISHING MACHINE

MICROSCOPIC SPECIMEN

VERTICAL FURNACE

BELT POLISHER

DRY & WET SURFACER

FOR DRY GRINDING:

Dry belt Surfacer is a continuous belt sander. It is used for removing sharp edges and for rough polishing of mounted/unmounted specimen. The Dry Belt Surfacer consists of a continuous belt of size 36″ X 4″ width (915 mm X 100 mm). The Belt runs on aluminium pulleys one of which is directly coupled to 1/4 H.P.,T.E.F.C. 220 Volts AC, single phase motor. The other pulley is fitted on a spindle in dolly which is spring loaded thus offering quick changing of worn out belts and keeping a fixed tension. The design also incorporates axial adjustment to align the belt in the centre. The belt runs over a plate situated between the two pulleys giving a working surface of approximately 4″ X 7″ area. It is totally enclosed for safety. The cover can be easily removed for changing the belt. Approximate dimensions of the base are 23″ X 20″ X 13″ height.

FOR DRY & WET SURFACE:

Similar to above but having arrangement for both wet and dry grinding it is supplied with coolant tank located in the base, a coolant pump with switch and pilot light, brush type coolant dispenser, water and drain connections. The switch enables dry polishing when put off. This is driven by a 1/4 H.P.,T.E.F.C. 220 Volts AC, single phase motor. The machine can use a large volume of water to keep the sample cool and avoid heat effects. A ‘S’ type water dispenser is used which remains parallel to the belt. The Machine is mounted on a self contained angle iron table.

ELECTROLYTIC POLISHER CUM ETCHER

Electrolytic Polishing is an electrochemical process for preparation of Metallogrpahic samples. It is a reverse process of electroplating, wherein the material from the samples is removed away by electrolytic action in presence of D.C. Potential. Electrolytic Polishing renders distortion free finely polished samples in seconds. In terms of quality, speed and ease of operations, electrolytic polishing exceeds mechanical polishing methods.

Necessary and optional Accessories
POWER SUPPLY UNIT. A 150 volts, 2.5 amps. DC supply source operating on 230 volts 50 cycles single phase AC mains. DC voltage varies with the help of a dimmerstat voltmeters with ranges 0-15 V and 0-150 V. Ammeters with ranges 0-250 MA and 0-2.5 A.DC. Three station selects for polishing, etching or external etching. An electronic timer 0-100 seconds for etching and 0 to 220 seconds for polishing. For timings beyond this range manually controlled polishing facility is provided. Polishing Table supply point include AC voltage for electrolyte pump having variable speed and DC source for polishing etching. Additional point for external etching is also provided. Supplied in sturdy cabinet with all the controls located in front.

Polishing Table
Comprising of the electrolyte container, recirculating pump unit drive, polishing cell with stainless steel cathode. Fitted in a sturdy aluminium housing. Spring loaded specimen contractor and three masks of 10 sq.mm.,30 sq. mm and 75 sq.mm. approx.
A magnetic stirrer is also supplied to ensure homogeneous electrolyte.

Accessories

1. Two glass containers: One Beaker 2000 cc. For use of polishing table and the other a petridish for use in external etching.
2. DC supply cord for use with polishing table and with external etching.
3. Supply cord for Electrolyte pump.
4. Vice is provided on the job platform for holding the jobs. The platform position is adjustable to accommodate job of odd shapes.
5. Extra copper cathode for polishing cell.

IMAGE ANALYSER

The Image Analysis system comprising of the followings:

1. Two glass containers: One Beaker 2000 cc. For use of polishing table and the other a petridish for use in external etching.
2. DC supply cord for use with polishing table and with external etching.
3. Supply cord for Electrolyte pump.
4. Extra copper cathode for polishing cell.

TRINOCULAR METALLURGICAL MICROSCOPE:
Microscope Stand : Rigid & stable stand with ball bearing guide ways & slides
Viewing Head : Binocular interchangeable with Trinocular Head for microphotography & CCTV Projection system
Focussing : Co-axial Coarse & fine focusing module
Stage : Large size stage with co-axial low drive, for convenient viewing of specimens Illumination : Incident light through Epi-illuminator with Field Aperture Diaphragm and filter slots. Continuously variable luminosity control through built-in Electronic Transformer.
Objectives : High fidelity flat field objectives M5x, M10x, M45x and M 100x oil
Eyepieces : Compensation Widefield 10x & 15x paired
Magnification : 50x-1500x

DIGITAL COLOUR CCD CAMERA:
Camera pick-up element size – 1/3″ It will have interline transfer CCD Image sensor, Resolution HN will be more than 400 TV lines (Center) It will have three chips with variety of frame grabbing speeds and resolution from reputed makes like water, lYC, Seny Pulnix

IMAGE GRABBER CARD:
High resolution scientific image grabber card Spatial resolution: 768 ‘” 576 (50 Hz) minimum Video format: Composite video and S-video (Y /e) formats, RS170, RS-330 and NTSC (60 Hz) or CCIR and PAL (50 Hz), interfaced software selectable Bus type: ISA Inputs: 1 active input, composite or S-video, AC coupled video Signal 1 volt peak to peak Camera Adapter. Will be suitable for microscope supplied with the system

SOFTWARE MODULES:
Grain size measurement, by Heyn intercept and Jeffries planimetry method (ASTM – El12 / E1382-91) I Austenitic grain size measurement Phase analysis (Percentage, volume and Area Fraction) and distribution of phases (ASTM – E -562) Linear Measurements like plating, coating, decarburization, banding etc. Nodule count (% Modularity Analysis), Distribution, nodule classification etc.(ASTM E 247). Graphite Flake analysis for size class and separation of A, C, D, E flakes and their exact % estimation (ASTM A-247-67) Inclusion Analysis (ASTM E 45/ E 1122) separation and rating Dendritic arm spacing Porosity measurement (size and distribution analysis) with particle count & size analysis Image database management software

• With facility of comparison of images
• Reporting in MS Word/MS Excel of microstructure images, results, graphs etc.
• Customized software according to users requirements
• Software will comply with International Standards like ASTM, JIS,DIN etc.

STANDARD ACCESSORIES LIKE:

• Optical to mechanical adapter
• CCD to Microscope interface
• Power source for CCD camera & Metallurgical Microscope with voltage stabilizer
• Electric cables etc.

VICKERS ROCKWELL BRINELL HARDNESS TESTER
