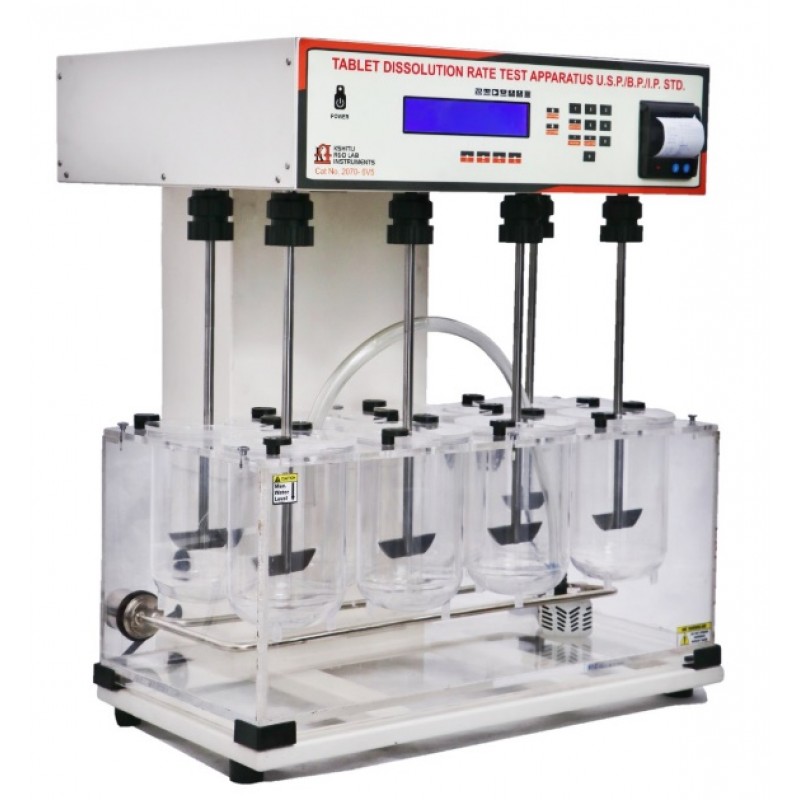

DISSOLUTION RATE TEST APPARATUS
MODEL NO.: KI-2070
Product Features:
- Geared Stirrer Assembly for high torque & accurate RPMs.
- Digital RPM Controller for Basket/Stirrer rotation.
- Digitally Temperature controlled 8mm thick Acrylic water bath with Dual Temp. Sensor system.
- Digital Timer upto 100 Hrs.
- 4 Test Modes: Free Run, Profile, Routine & Sustain
- Heater Protection System along with Water level System.
- Power failure protection system helps to restart the test where it was left in case of power failure.
- Real Time Clock along with weekday display.
- On board Thermal Printer for printing Test Reports on the spot & fast.
- Motorized Auto Lift for positioning of stirrer assembly
Model
No. | KI-
2070-3V3 | KI-
2070-6V3 | KI-
2070-8V3 |
Type | 3
Stage | 6
Stage | 8
Stage |
Paddle/
Basket | 3
Sets | 6
Sets | 8
Sets |
RPM | 20
- 160 (± 1 RPM) | 20
- 160 (± 1 RPM) | 20
- 160 (± 1 RPM) |
Timer | 00:01
to 99:59 (HH:MM) | 00:01
to 99:59 (HH:MM) | 00:01
to 99:59 (HH:MM) |
Temperature | Digital
5oC above ambient to 45oC (± 0.1oC) | Digital
5oC above ambient to 45oC (± 0.1oC) | Digital
5oC above ambient to 45oC (± 0.1oC) |
Display | 20x4
Alphanumeric LCD Display | 20x4
Alphanumeric LCD Display | 20x4
Alphanumeric LCD Display |
Waterbath | Made
up of Heat Resistant 8mm thick Acrylic | Made
up of Heat Resistant 8mm thick Acrylic | Made
up of Heat Resistant 8mm thick Acrylic |
Heater | 1000
Watt SS | 1000
Watt SS | 1000
Watt SS |
Sensor | Dual
Sensor System (PT-100) | Dual
Sensor System (PT-100) | Dual
Sensor System (PT-100) |
Auto
Lift | Available | Available | Available |
Jars | P.C.
Unbreakable (6 Nos.) | P.C.
Unbreakable (6 Nos.) | P.C.
Unbreakable (8 Nos.) |
Power | 220
/ 230 VAC 50Hz | 220
/ 230 VAC 50Hz | 220
/ 230 VAC 50Hz |
Dimensions | 616
x 578 x 585 mm | 616
x 578 x 585 mm | 616
x 578 x 585 mm |
Weight | 58
Kg (approx.) | 58
Kg (approx.) | 58
Kg (approx.) |
