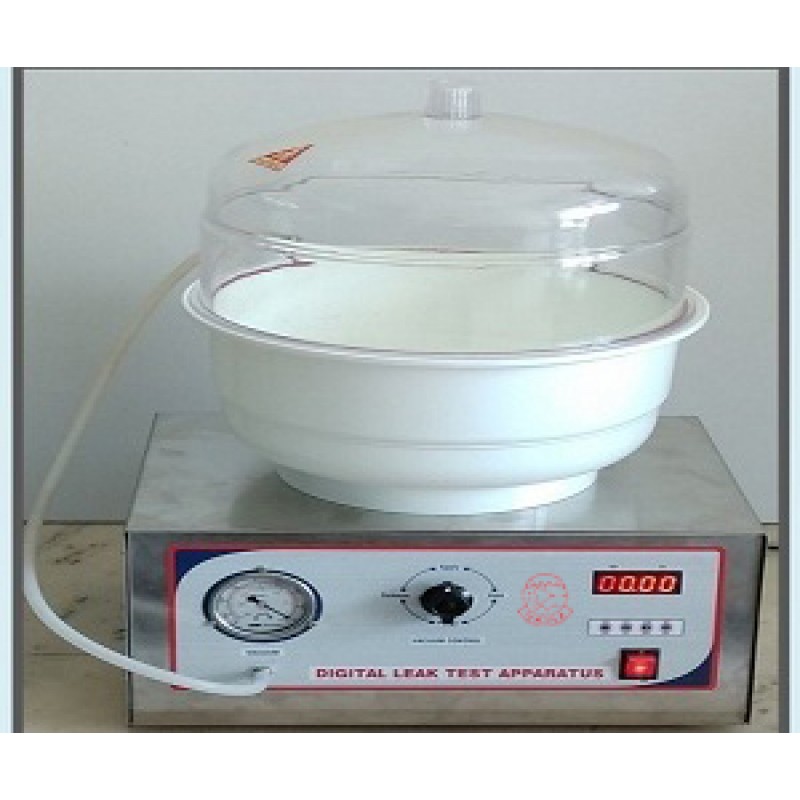

DIGITAL LEAK TEST APPARATUS NS939

Product Details :

The instrument is used to test the quality of the packaging process and to check that the seals enclosing the product are perfectly intact. Our Leak tester is designed to find the smallest holes and imperfections in blister packs and other semi-rigid product packaging. The leak test apparatus is widely used in the pharmaceutical industry for checking strips, blisters and bottles containing tablets, capsules and syrups. It also find application in the food industry where it can be effectively used to check the air-tightness of sweet packets, ready-to-eat pre- packed foods, confectionery packaging, packs of noodles, sauces etc.

Features

• Programmable test time
• 1mm thick SS Cabinet

• Precise controll of vacuum

• Hold and resume facility
• Alarm at completion of test

• Heavy duty Oil free vacuum pump


Parameter	Data
Type	1mm Thick SS Cabinet
Time Controll	Digital (0001 to 9999 sec.)
Vacuum Pump	Oil free with max. Vaccum 27 ± 5%, 1/4 HP Motor
Vacuum Controll	Precise Vacuum Regulator
Test Vacuum Range	Adjustable (100 to 650 mm Hg)
Vacuum Display	SS Vacuum gauge
Test Unit Size	200mm
Audio Alarm at completion	Yes ( On time programmable)
Hold and Resume Facility	Yes
