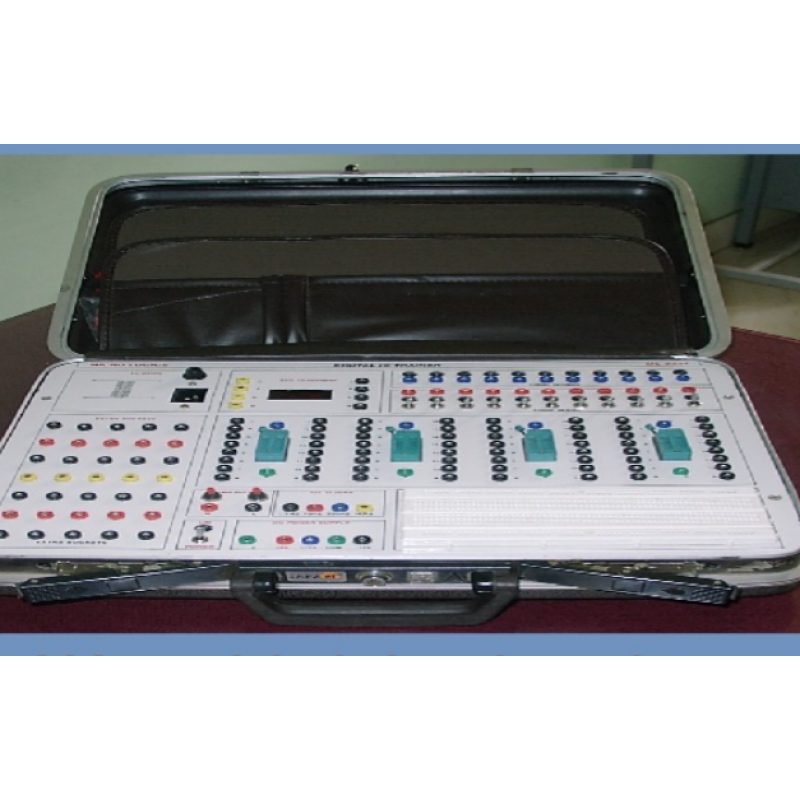

DIGITAL IC TRAINER KITS
Product Details:
SPECIFICATION
Micro Logics Digital IC Trainer provides your hands on practical Experience on Digital and TTL electronics at one place and saver the time and Money without compromising the quality standards.
This trainer kit is specially designed for the use in Engineering Colleges, Polytechnic Institutes, ITI and Science Colleges for students to study and set up Different experiments.
Technical Details:
Output voltage: 5V/1A Fixed DC Voltage, +/- 12V DC Fixed.
Output current: 1A DC Fixed, 500mA Fixed.
Load Regulation: +/-0.1 % plus 5mv from full load to no load.
Line Regulation: +/-0.1% plus 5mv for +/-10% change in mains voltage supply.
Ripple and Noise: Less than 2.5 mV
Description:
Digital IC Trainer is self-contained experiments with the following facilities for TTL and CMOS IC Experiments.
4 No’s of 16 pin ZIF SOCKET.
12 No’s of Logic switches with LED Indicators for Logic inputs.
12 No’s of Logic output Indicators with LED Indications.
Different clock signals (pulses).
Mono pulse for high and low level flasher.
2 No’s of Seven segment Display for BCD output.
All outputs termination from 2mm terminals.
Fixed power supplies of +5V/1Amp
Fixed power supplies of +/-12V/500mA
Unit is protected through short circuit and overload protection.
With 10 No’s of 2mm patch chords.
