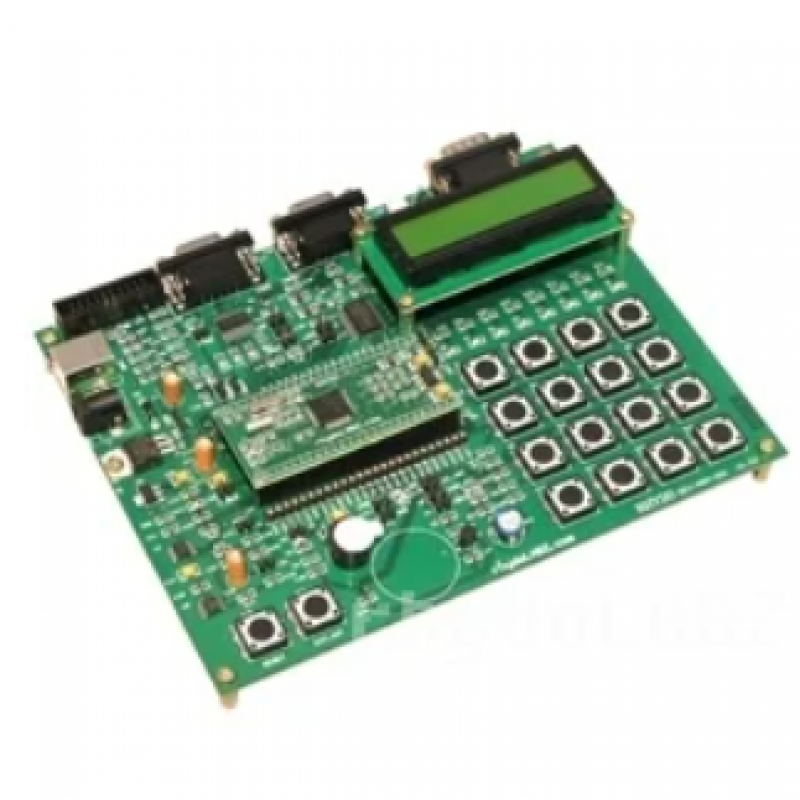

DEVELOPMENT BOARD
Product Details:
 • 32 Bit MCU clocked at 12 MHz • Expansion connectors for plug in modules and prototyping area • 8 kB to 40 kB of on-chip static RAM and 32 kB to 512 kB of on-chip flash memory. • USB & RS232 both interface given for programming • USB 2.0 Full-speed compliant device controller with 2 kB of endpoint RAM • LPC2146/48 provides 8 kB of on-chip RAM accessible to USB by DMA • Master Reset/Restart Key for hardware reset •  RTOS supported • On platform UART 0 and UART 1 Interface • On platform ADC (10 Bit ) Interface • On platform 10-bit DAC provides variable analog output • On platform PWM Interface • On platform facility to connect JTAG debugger • On platform GPIO Connectors • 60 MHz maximum CPU clock available from programmable on-chip PLL with settling time of  100 µs • On-chip integrated oscillator operates with an external crystal from 1 MHz to 25 MHz • Power saving modes include idle and Power-down • Input/Output & test points provided on platform • On platform four external interrupts interface • CD with sample project code, Programmer software & useful documents  • Self contained development platform with on platform DC Power Supply-
