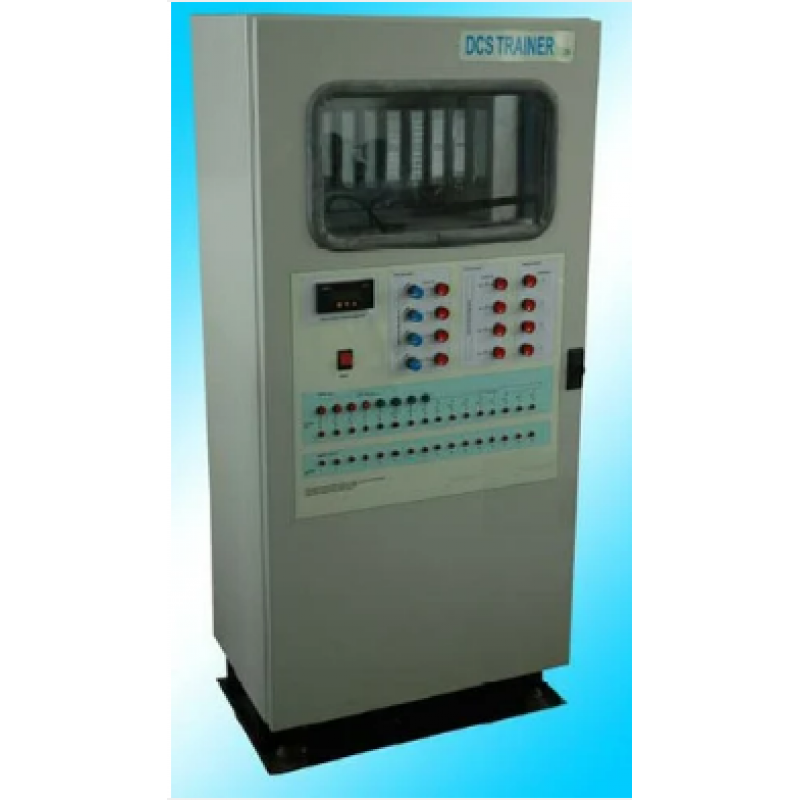

DCS Trainer Hybrid Controller

The set up is designed to understand the latest techniques adopted in process control. The concepts of hybrid controller, DCS, Network and HMI server can be well understood. Set up consists of Universal Hybrid Controller, a control panel for simulating inputs as well as connecting real time process, software package for configuring the controller and a SCADA package. The components are assembled on a standalone industrial control panel. The Hybrid controller has logic capability and speed of traditional PLC and the regulatory features and power of DCS. The controller is designed for discrete manufacturing automation tasks, continuous regulatory process control and batch control. It consists of power supply, Controller (CPU), DiscreteI/Os, Analog I/Os and Network interface modules.Easy to use Windows based Configuration software, operable over Ethernet and RS232 port simplifies controller configuration. It provides advanced monitoring functions for debug, allows run-mode configuration changes while limiting process interruption uploads.

Features:

• True industrial universal Hybrid controller
• Configuration using Function blocks
• Modbus/TCP and Modbus RTU for control network
• Ethernet and Serial OPC server for HMI clients
• SCADA (HMI) Package
• Panel for input simulation
• Easy interfacing with existing process plants
• 4 Relays of 230 VAC for Digital output
• Inbuilt powering for all AI, DI & DO

Specification:

Product	DCS trainer (Hybrid controller)
Product code	329
Control Unit	Hybrid controller, Make Honeywell, Model HC900 – C30, AI 8, AO4, DI 16, DO16, Control loops 8 with Hybrid Control Designer software
Communication	RS232, RS485, Ethernet
Software package	Wonderware Intouch 64 Tags, SCADA package
Control panel	Standalone industrial control panel with, 4 Rotary switches for simulated AI 8 Push buttons for simulated DI 16 Indicators for DI 16 Indicators for DO 12 Power supply (24 VDC) for powering transmitters 4 Relays of 24 VDC for DO application Connectors for each field input and output connection
Overall dimensions	600Wx400Dx1200H mm

Additional Information:

• Item Code: MI-329
