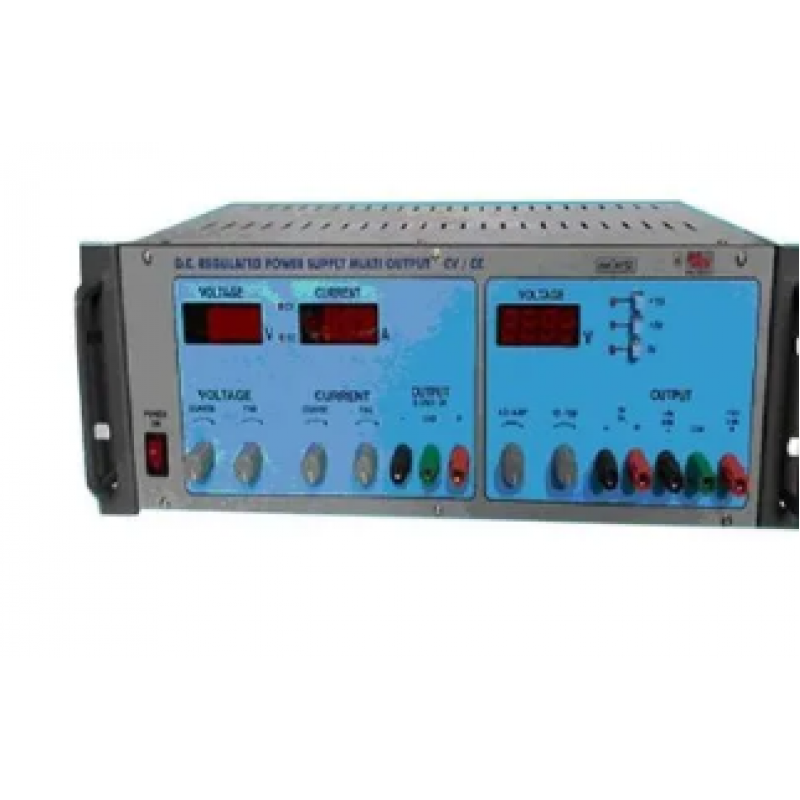

DC Regulated Power Supply Triple output
Product Details:

rand	Dot Tech
Output Voltage	1) 0 to 32 V, 2A 2) +/- 13.5 to 16V, 1A 3) 4.5 to 5.5V, 5A
Ripple	0.05 % mV r.m.s. + 5 mV
Model No/Number	4152
Max Load current	2 A,1 A,5 A
Meter Type	Output 1 - Two digital meters for V & A -- 3 digits LED 0.5" height Accuracy: 0.5%
Line regulation	0.05 % mV + 5 mV for no load to full load for 10% line variation
Load regulation	0.05 % mV + 5 mV for no load to full load
Protection	Constant current type for overload and short circcuit
Power Requirement	230 +/-10% VAC, 50 Hz, single phase
Cabinet Size	19" 3U Depth 320 mm sub rack { 484 mm (W) x 133 mm (H) x 320 mm (D)}
