DC REGULATED POWER SUPPLY
Product Details:

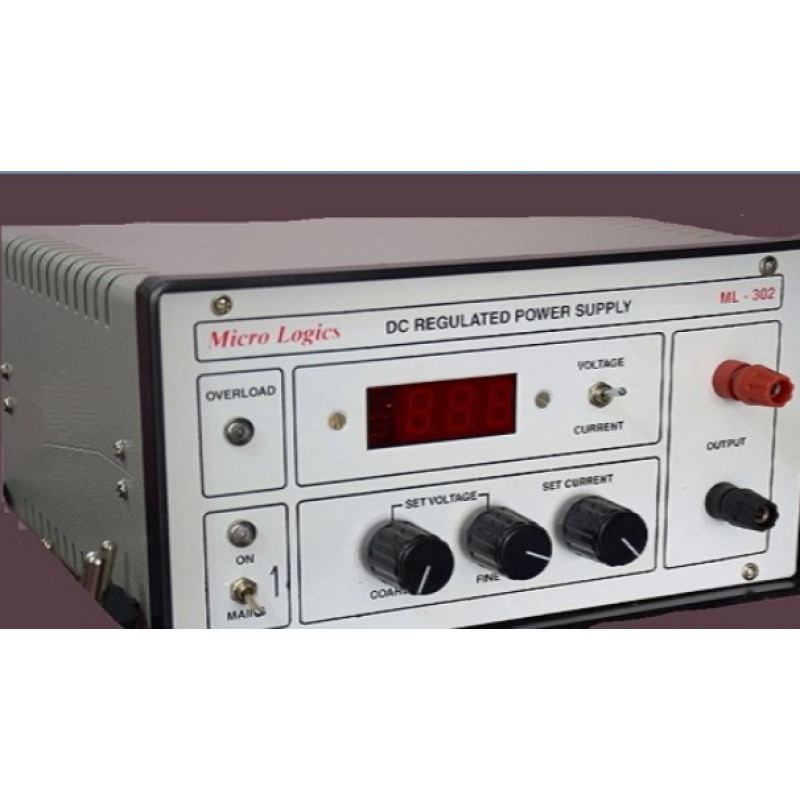

Micro Logics DC Regulated power Supply Model ML 302 is a popular model from a comprehensive range of regulated power supplies. This easy to use, low power, low voltage very high regulation laboratory supply is particularly suitable for experimental set-ups, circuit development and low voltage application.


Specifically, the unit provided maximum voltage of 30 Volts with a maximum current capacity of 2 Amps. Both voltage and current are precisely regulated with low output ripple. The power supply can be operated either in constant voltage or in constant current mode and is fully protected against overload and short circuit protection by means of automatic cross over characteristics. The output voltage and current are monitored by the DPM (Digital Panel Meter)
Technical Details:
  Output voltage: 0-30V DC Continuously variable by coarse and fine control.
 Output current: 0-2A. Max. Continuously variable by current limit control.
 Load Regulation: +/-0.1 % plus 3mv (for the load variation from no load to full load)
 Line Regulation: +/-0.1% plus 3mv (for +/-10% change in mains voltage supply)
 Ripple and Noise: Less than 3 mV (RMS Max) (20Hz to 20MHz)
 Stability at constant ambient Temperature (8Hrs after warm up of 30 minutes) 0.1% plus 3mV.
 Transient recovery time(Within 10mV of set output) : 100mSec
 Protection: Automatic crossover type of output characteristic provides perfect protection to the power supply against overload and short circuit
 General metering: Two DPMs to read voltage and current of 35V and 2.5A monitor the output voltage and load current continuously
 DPM Accuracy: +/- 1% of full overall range.
 Operating Temp range: 0-50 degree C
 Input power requirement: 230V AC +/- 10%, 50Hz single phase.
