DC REGULATED FIXED POWER SUPPLY
Product Details:
SPECIFICATION

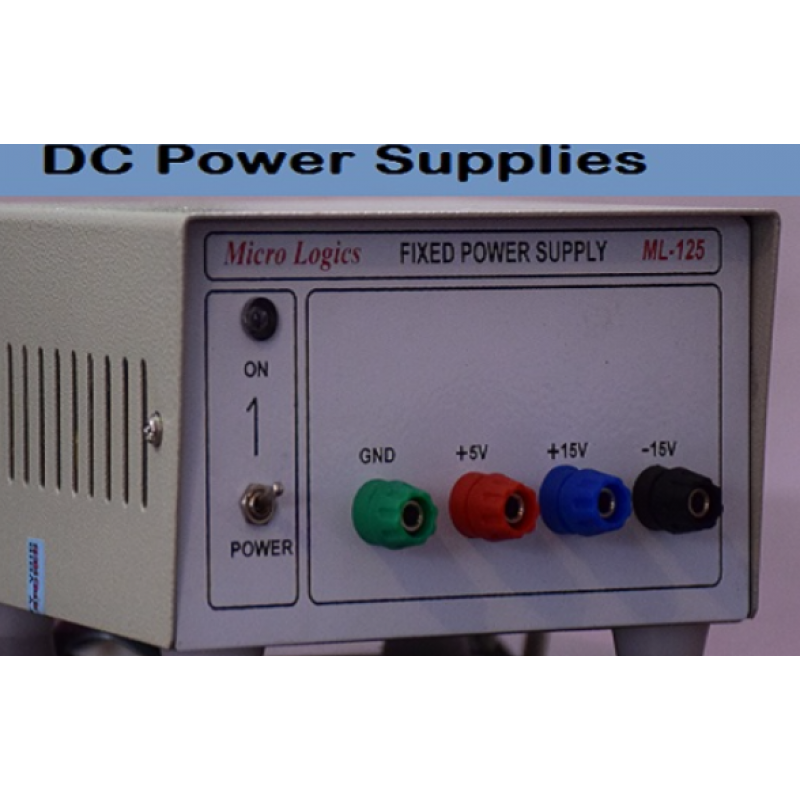

Micro Logics DC Regulated Fixed power Supply Model ML 125 is a popular model from a comprehensive range of regulated power supplies. This easy to use, low power, low voltage very high regulation laboratory supply is particularly suitable for experimental set-ups, circuit development and low voltage application.
Specifically, the unit provided fixed voltage of +/-12Volts with a current capacity of 1 Amps. Both voltage and current are precisely regulated with low output ripple. The power supply can be operated either in constant voltage or in constant current mode and is fully protected against overload and short circuit protection by means of automatic cross over characteristics.
Model ML 125:output is floating i.e. neither the positive nor the negative output terminals (nor any point within the regulator circuit) is connected to chassis or ground. Has the power supply may be used as a positive or a negative DC source by grounding negative or positive output terminal respectively.
Technical Details:
Output voltage: +5V, +/- 12V DC Fixed.
Output current: 1A. Max.
Load Regulation: +/-0.05 % plus 3mv (for the load variation from no load to full load)
Line Regulation: +/-0.05% plus 3mv (for +/-10% change in mains voltage supply)
Protection: Automatic crossover type of output characteristic provides Perfect protection to the power supply against overload and short circuit
Operating Temp range: 0-50 degree C
Input power requirement: 230V AC +/- 10%, 50Hz single phase
DC REGULATED FIXED POWER SUPPLY
