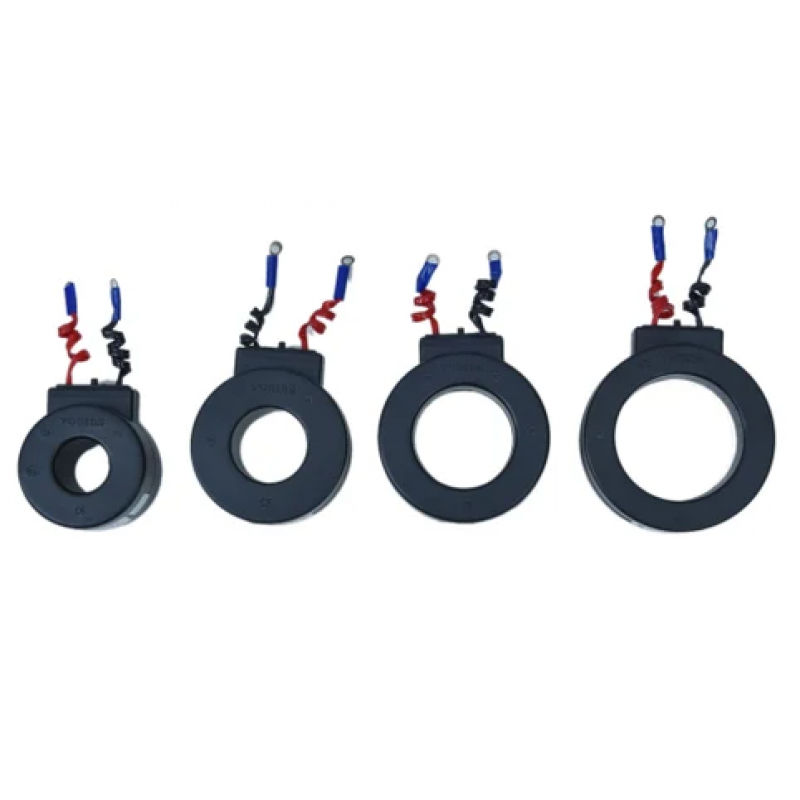

Current Transformer Encapsulated With Wire
| CT Ratio | 5A to 1500A |
| Core Type | Bar CT,Ring Core Type CT |
| Accuracy Class | 0.5,1 or 3 |
| Rated Voltage | 440V |
| Rated Power (VA) | 2.5 VA to 15 VA |
| Brand | YOKINS |
| Material | Polycarbonate |
| Color | Black |
Polycarbonate Round Casing CTs
YOK-RW series round type CTs are housed in robust case with classical finish. The case is made of polycarbonate, which is flame retardant and non-drip. Polycarbonate is a very tough and light weight engineering plastic material which has got the best mechanical properties very close to a metallic housing.
FEATURES •Test Voltage 3KV 50Hz 1min • System Voltage 720V Max. • Ratio ratings from 50/5A to 5000/5A. • Comprehensive measurement of class accuracy. • Wide range of system current ratings and busbar sizes. • CTs manufactured as per IEC 60044-1 & IS 2705-1 |
Additional Information:
- Item Code: YOK-RW
Current Transformer Encapsulated With Wire
- Views: 44
- Vendor: Yokins Instruments Private Limited
- Vendor Type: Manufacturer, Distributor, Supplier
- Product Code: YIP0000034
- Availability: In Stock
- ₹0
