Current Transformer Encapsulated With Terminals
| CT Ratio | 30A to 1500A |
| Brand | YOKINS |
| Usage/Application | Metering |
| Accuracy Class | 1 or 3 |
| Core Type | CRGO |
| Color | Black |
| Rated Burden | 5VA- 15VA |
| Rated Burden (VA) | 5VA - 15VA |

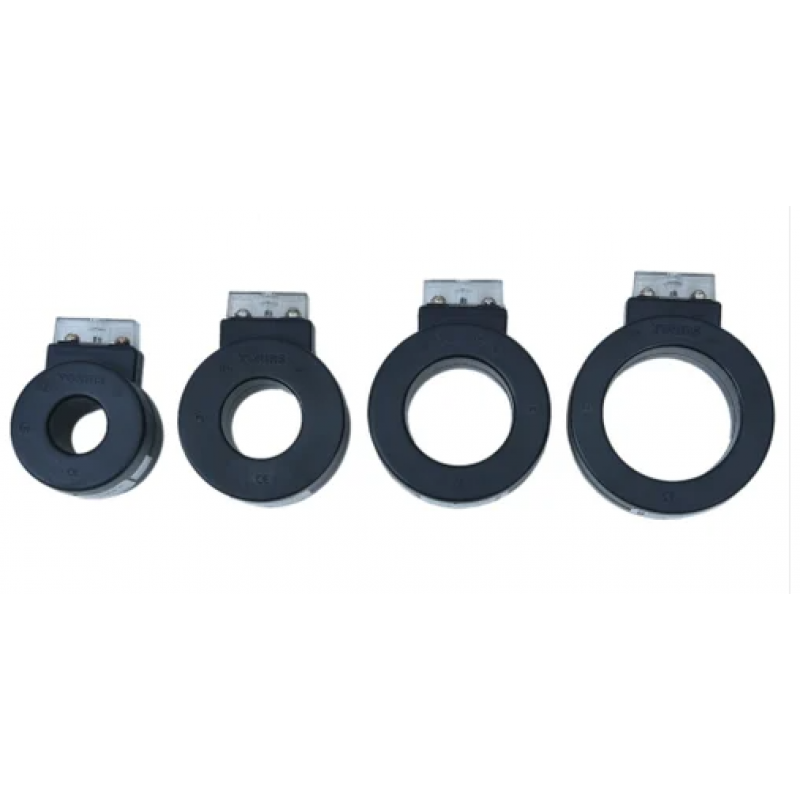

Polycarbonate Round Casing CTs
YOK-RT series round type CTs are housed in robust case with classical finish. With brass terminals for secondary current output and protective cover/cap for the same. The case is made of polycarbonate, which is flame retardant and non-drip. Polycarbonate is a very tough and light weight engineering plastic material which has got the best mechanical properties very close to a metallic housing.FEATURES
•Test Voltage 3KV 50Hz 1min.
• System Voltage 720V Max.
• Ratio ratings from 50/5A to 5000/5A.
• Comprehensive measurement of class accuracy.
• Wide range of system current ratings and busbar sizes.
• CTs manufactured as per IEC 60044-1 & IS 2705-1Current Transformer Encapsulated With Terminals
