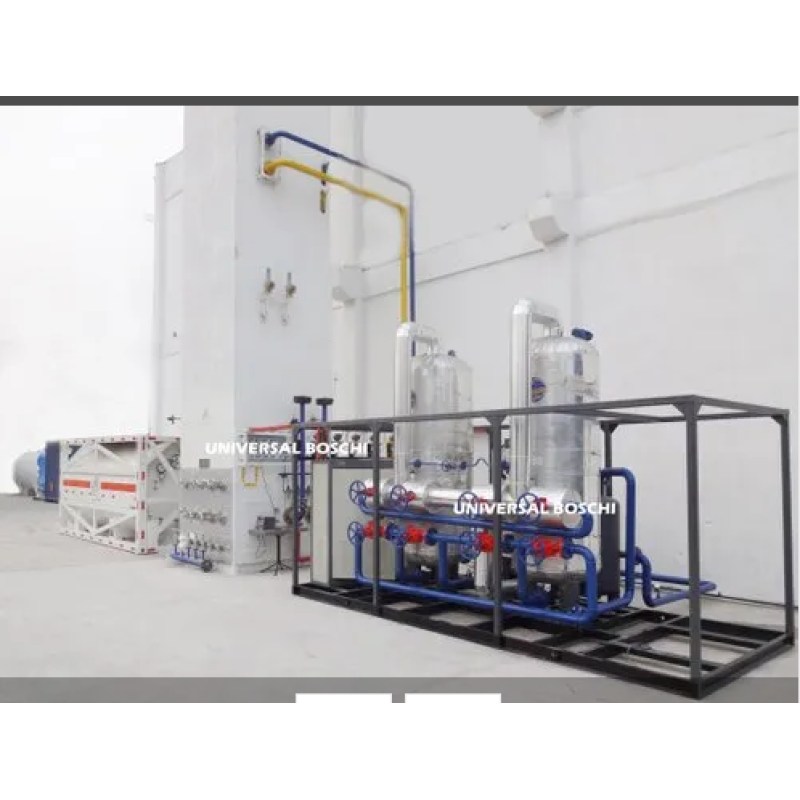

Cryogenic Nitrogen Generation Plant
Product Details:

Capacity	1,000 to 15,000 m3/hr
Material	Stainless Steel
Frequency	50 Hz
Technology Used	Cryogenic
Automation Grade	Automatic
Brand	UNIVERSAL BOSCHI
Nitrogen Purity	99.9%
Approval & Licenses	CE, ISO
Oxygen Purity	99.7%
Voltage	440 V

We are renowned for manufacturing and supplying cryogenic nitrogen plant with the latest cryogenic air separation technology. The gas has extensive range of industrial applications and is known as the largest industrially consumed gas. It is very important for the chemical industry to make fertilizers, nitric acid, nylon, dyes, and explosives.  And, it is valued for creating an un-reactive atmosphere which is required for preservation of foods and for production of transistors and diodes.  Considering the extensive use of nitrogen, there is huge demand for high quality liquid nitrogen plants. We have developed world-class expertise in designing and manufacturing. Our nitrogen making factory in India is equipped with the latest facilities and we comply with strict quality control. The plants are fully automated making it easy to operate.  Our nitrogen plants are fully automated with low operational and maintenance cost.
Working principle of cryogenic nitrogen plant Nitrogen is produced through the liquefaction and separation of air in the air separation unit (ASU). The air is compressed & then moved into the cleanup system where impurities such as carbon dioxide, hydrocarbons and moisture removed. The air so purified is cooled to cryogenic temperatures in the heat exchangers. Now, the air is put into a high pressure distillation column separating nitrogen from oxygen and other gases. Nitrogen is formed at the bottom of the column. It is collected and moved to the low pressure distillation column where it is further distilled to meet specifications of clients.
