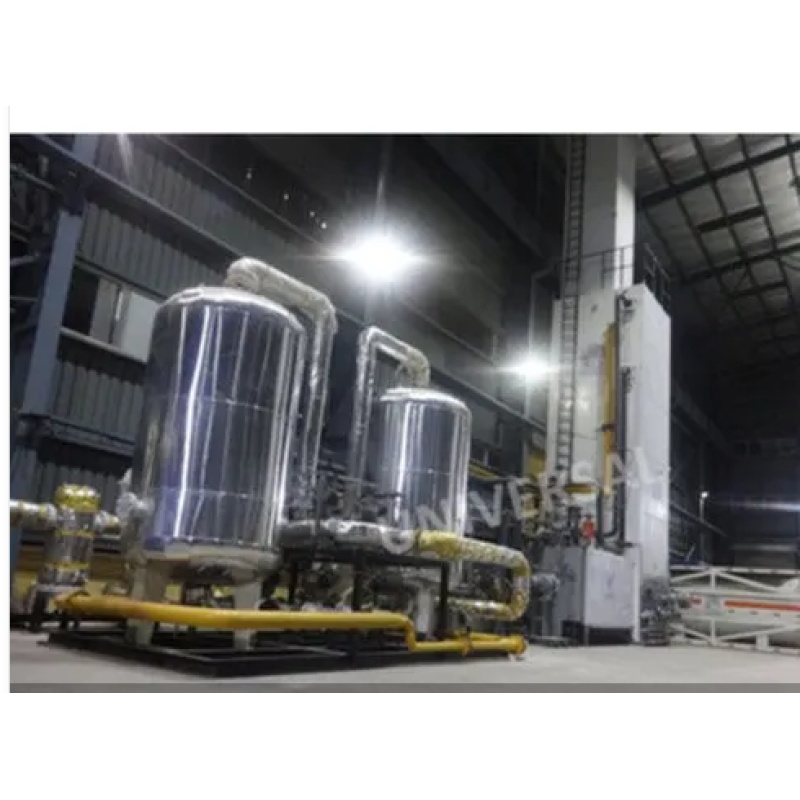

Cryogenic Nitrogen Gas Plant
Product Details:

Minimum Order Quantity	1 Plant
Approval & Licenses	CE, ISO
Technology Used	Cryogenic
Operating Air Pressure	0.5 to 15 Mpa
Frequency	50 Hz
Voltage	440 V
Nitrogen Purity	99.9%
Application	Industrial / Medical
Capacity	500 m3/hour (2000 Cylinder/Day)
Automation Grade	Automatic
Technology	ING L.&A. BOSCHI, ITALY (Since 1930)
Oxygen Purity	99.7%
Phase	3

We design and fabricate world-class nitrogen gas plants that are trusted for their performance, quality and reliability. Our engineers have top-notch expertise in implementing cryogenic distillation process. We designed and developed our own processes in technical collaboration with ING. L. & A. Boschi, Italy for fabricating onsite nitrogen gas system for production of nitrogen with purity up to 99.99%. Our unique innovation in cryogenic processes have substantially increased the production capacity of the machinery and lowered power consumption. Cryogenic distillation is suited best for producing gaseous nitrogen and oxygen for medium to large scale businesses. Manufactured with high quality materials, the onsite nitrogen system can generate nitrogen 24*7 for 10 years, the entire life cycle. And, clients are impressed with amazing return on investment (ROI), which will break even within two years.
ur comprehensive nitrogen gas solutions enable the clients to produce unlimited nitrogen and one can easily build up backup for future use. Cryogenic technology is considered the most efficient for generating nitrogen. The process starts with taking atmospheric air into the air separation unit, which is then compressed. Then, the air is moved into the molecular sieve system where impurities like carbon dioxide, hydrocarbons and moisture. Then, the air is taken into the heat exchangers where the air is cooled to cryogenic temperatures. The liquefied air is moved to the high pressure distillation column where nitrogen is physically separated from oxygen, argon and other gases. Now, nitrogen is moved to the low pressure distillation column where it is distilled further to meet commercial purity.
We optimize and customize the designing and manufacturing as per local conditions and requirements of the customers. Our systems are fully automated and consume less power needing minimum maintenance. Clients must send their details required plant capacity, budget, delivery pressures, etc,
