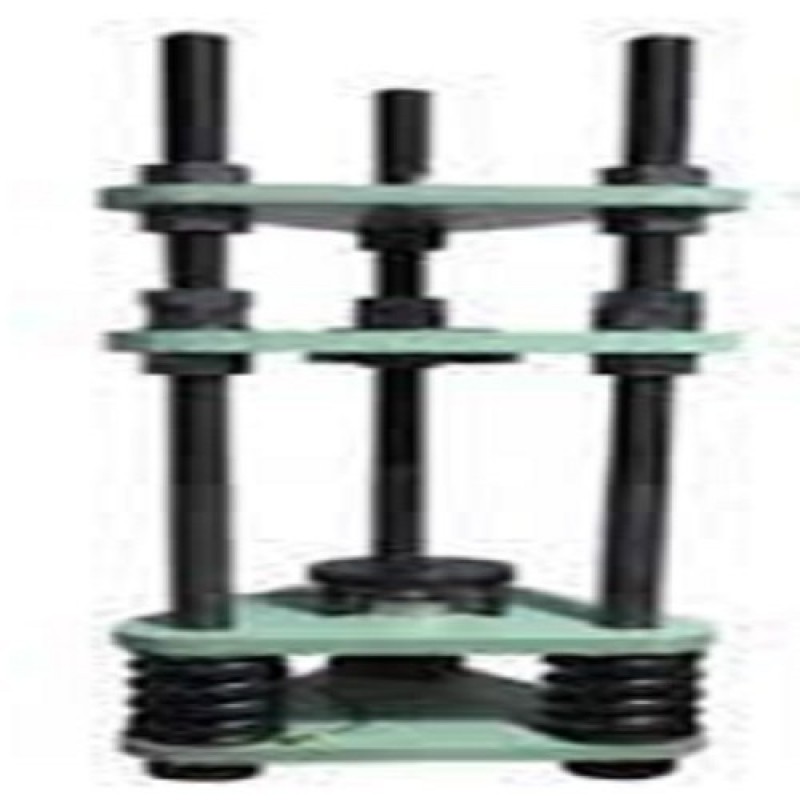

Creep Test Rig

Product Details :

SPECIFICATION:-

This Apparatus is designed to determine the Creep of Concrete Cylinder subjected to sustained longitudinal compressive load. ASTM C512

The equipment shall consist of the following replaceable parts :

• One pumping unit electrically operated at 1000KN
• One load gauge 0-1 000 kN x 5 kN on 1 57mm ram dia, electrical operated 1No.
• One reaction frame suitable for 3 Nos.150 dia x 300mm long cylindrical samples
• One hydraulic jack of 1000KN capacity

Reaction Frame

• Reaction frame consists of Upper & Lower Jack plates and Upper & Lower
• Loading Plates bearing on the ends of the Loaded specimen, load maintaining elements (springs), threaded rods & nuts to take the reaction of loaded system.

Additional Information:

• Production Capacity: 1000 KN
