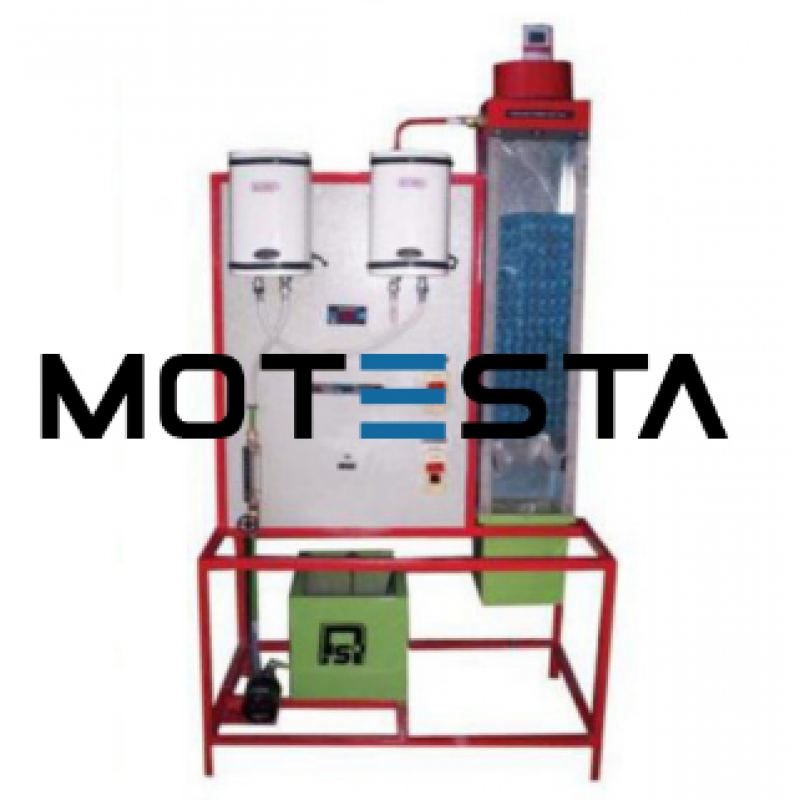

Cooling Tower Test Rig

This Laboratory scale working model housed on a M.S. Square tube frame along with instrumentation panel is used To determine i) the tower characteristic (KVA/L Value), ii) The made up water flow rate and iii) To plot end states on a psychometric chart which can be used to draw energy balance.

01. Cooling Tower
a) Size	:250 x 250 mm
b) Height	: 1000 mm
c) Material	: Aluminum body with acrylic frame
D) Packing Sheets	: Perforated Aluminum corrugated
02. Blower
a. Capacity	: 1HP
b. Make	: Any reputed make.
03. Geyaser
a. Capacity	: 3KW
b. Make	: RACOLD/ BAJAJ
04. Psychometrics Gun
a) Material	: Acrylic
05. Digital Temperature Indicator
a. No. of Digits	: 4 Digits
b. Range	: Ambient to 200
c. Resolution
06. Thermocouples
a) Length	: 1 Mtr.
b) Type	: Cr. Al
c) Sheathing	: Wire mesh sheathing
07. Air Flow measurement	: U Tube Manometer
a. Material	: Glass
b. Size	: 300mm
c. Media	: Mercury
08. Water flow measurement	: Rotameter
a. Range	: 0 to 60 cc/sec
09. Calibrated water tank
a. Material	: S.S/18 Swg
b. Size	: 200 x 250
10. Starter
a. Make	: Crompton/Any Reputed Make.
