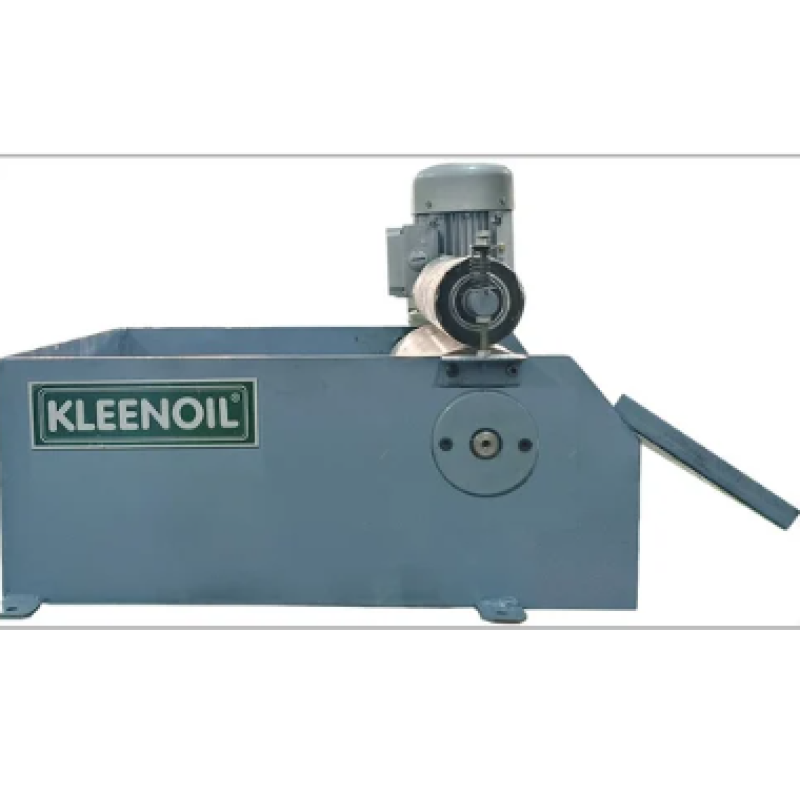

Coolant Magnetic Separator

At Kleenoil, through our manufacturing expertise and experience in the field of lubricants,
we have developed an all-new Magnetic Roller for the removal of ferrous metal
contamination from a wide spectrum of cutting fluids and oils.

Typical Applications:
● Grinding
● Milling
● Turning
● Broaching

ADVANTAGES of the KLEENOIL Magnetic Roller:
 Continuous Automatic cleaning
 High collection capacity
 Removes coarse-sized contamination
 Scalable to suit any flow rate
 Rare Earth high-intensity magnetic material
 Adjustable baffle plate
 Low maintenance
 Maximizes fluid recovery
 Ready to recycle waste

Cleaning:
Contaminated fluid is fed into the inlet feed tray, which allows the fluid to spread out evenly.
The fluid then passes the adjustable baffle plate and onto the magnetic roll surface where
the particles are attracted.
Once attracted, particles follow the rotation of the roll until it reaches the cleaning blade. This
the blade is positioned to efficiently wipe off any collected contamination allowing it to fall freely
into a collection bin.
Suitable Fluids:
All neat oil and water-based fluids.
Suitable Locations
Between machine and fluid tank.
