The Vibrating Table produces better concrete Moulds and cylinders by removing entrapped air. It distribute concrete evenly inside the moulds and nearly eliminate the problems of bug holes and air bubbles.

General Description and specifications

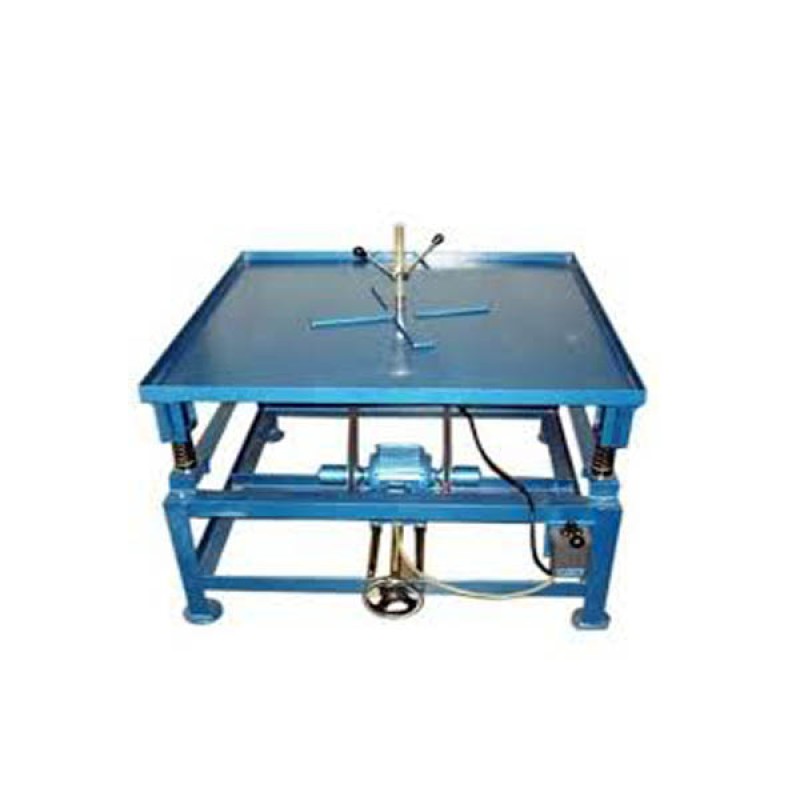

The Vibrating table is entirely constructed of thick steel. The table top is made of thick mild steel plate and has stops along its edges to prevent moulds from walking off the table during operation. A cross arm adjustable on a vertical rod at the centre of the table is provided to hold the moulds while operating the table. The variable pitch pulley arrangement permits the variation of frequency between maximum of 3600 vibrations down to 2600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency. The vibrator is mounted on cushioned steel vibrating deck. A switch is provided for starting the motor. Operation on 440 V, three phase, A.C. supply.

Table Sizes

Optional Accessories (at extra cost)

• 50 X 50 CMS
• 60 x 60 CMS
• 75 x 75 CMS
• 100 x 100 CMS
