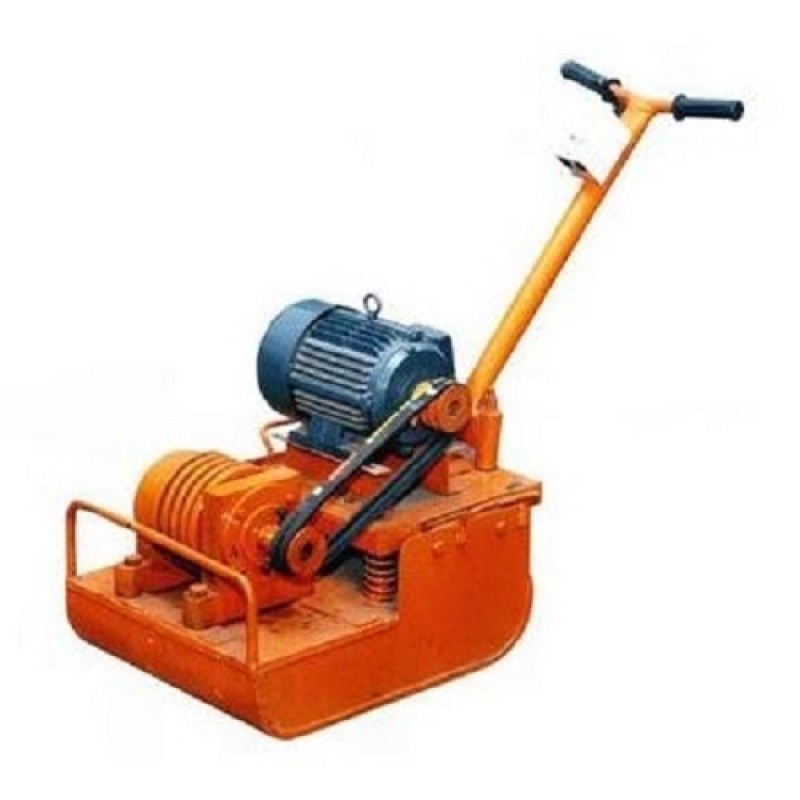

Vibratory Plate Earth Compactor
Model No.: SMEW-0087
These are self propelled, light in weight and compact machines having high forces, low amplitude and high frequency, based on the principle of reciprocal pressure generation by frequency un directional impulse vibrator which causes the ramming and forward movement, Sana Earth Rammer can compact thicker layers of non-cohensive and semi-cohensive soils and maximum density (95% to 98%) are achieved in less number of passes. Application non-cohesive soil, subgrades maneuvers close to abutments retaining walls, pilling , ideal for key trenches, cannel embankments, back till jobs, factory floor, foundations, bridge approaches etc.
Technical Details :
| Model | Weight | Impact Force | Compaction Capacity | Vibrating Frequency | Prime Motor | Power Rating | Plate Size | Working Capacity | Depth Effect | |
|---|---|---|---|---|---|---|---|---|---|---|
| SMEW-601 | 90 kg | 950 kg | 1 to 2 Ton | 3500 RPM | Electric | 3 HP | 14x24 inch | 3000 sqr/H | 4 inch | |
| SMEW-602 | 210 kg | 3500 kg | 4 to 6 Ton | 2500 RPM | Electric | 5 HP | 20x32 inch | 3000 sqr/H | 7 inch | |
| SMEW-603 | 300 kg | 4500 kg | 8 to 10 Ton | 3000 RPM | Electric | 7.5 HP | 20x38 inch | 5500 sqr/H | 10 inch |
Vibratory Plate Earth Compactor
- Views: 143
-
SM Engineering Works - Product Code: SMEW-0087
- Availability: In Stock
- ₹0
Seller information
SM Engineering Works
- SM Engineering Works
- http://www.smew.co.in/index.php
- New Delhi, India
- Business Type :Supplier, Manufacturer
