Vibrating Table
Product Details:
| Max Weight | 400-800 kg |
| Power | 2-4 kw |
| Material | Stainless Steel |
| Voltage | 1440 V |
| Table top | 50 cm x 50 cm |
| Load carrying capacity | 140 Kg |
| Frequency | 3600 - 2600 vibrations per minute |

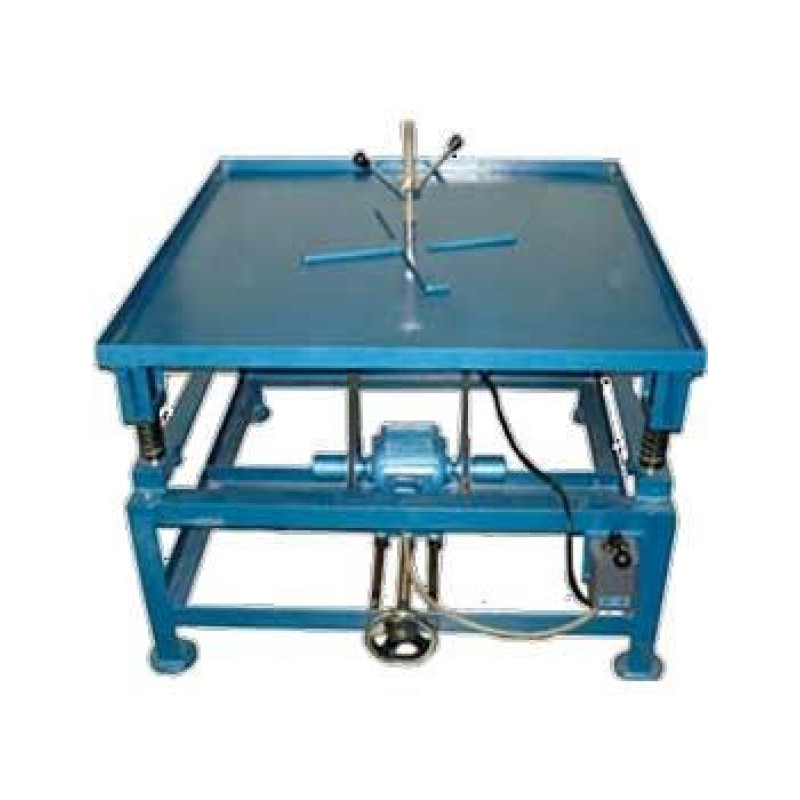

The Vibrating Table is used for compacting concrete cubes and cylinders.
Details: The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means of off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top and has stops along its edges to prevent moulds from walking off the table during vibration. A cross arm adjustable on a vertical rod at the center of the table is provided to hold the moulds while operating the table. A speed regulation handle is provided for increasing or decreasing the frequency.
Note: Vibrating Tables of Tables top size 75cm x 75cm as well as 100cm are also available.
