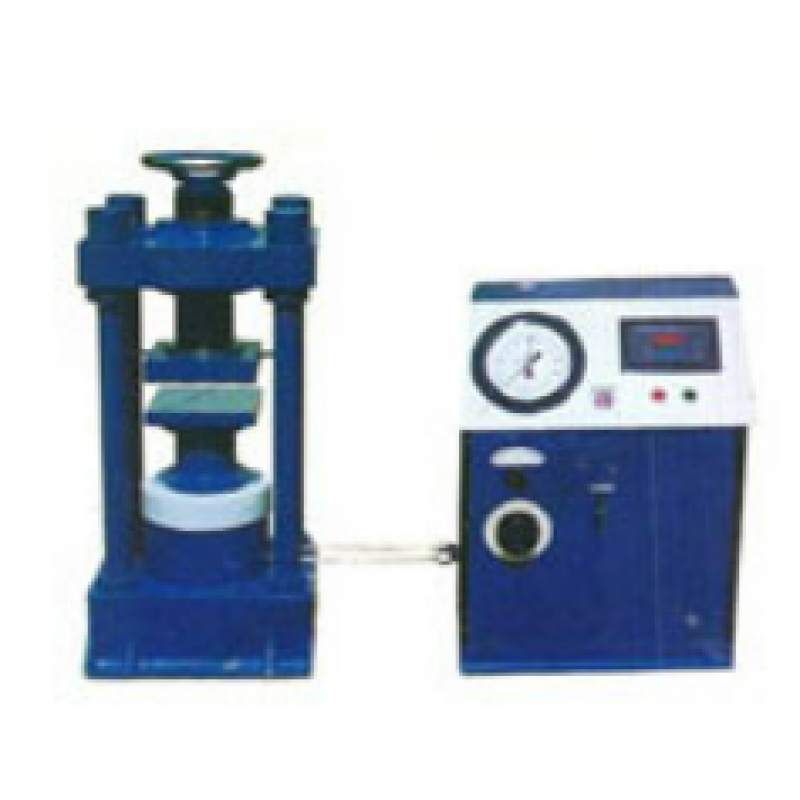

Compression Testing Machine

Available with us is an extensive range of Compression Testing Machine, which is fabricated at par the latest technological advancements in the market. These machines are used for testing the compressive strength of concrete. Besides, these are best suited for testing cubes and cylinders but with special platens.



Features:



• High stability

• Self aligning platen assembly

• Bricks can also be tested

• User friendly

Technical Specification:

Cat. No.	Capacity	Pumping Unit	Loading Range	Least Count	Specimen Size
IL- 118	0-50kN	Manually	50 kN	0.2kN	50mm & 70mm cubes
IL- 119	0-250kN	Manually	250kN	1kN	50mm & 70mm cubes
IL- 120	0-250kN	Electrically	250kN	1kN	50mm & 70mm cubes
IL- 121	0-500kN	Manually	500kN	2kN	100mm cubes
IL- 122	0-500kN	Electrically	500kN	2kN	100mm cubes
IL- 123	0-500kN	Electrically	500kN	2kN	100mm cubes
	0-250kN	Electrically	250kN	1kN	- do -
IL- 124	0-500kN	Electrically	500kN	2kN	100mm cubes
	0-250kN	Electrically	250kN	1kN	- do -
	0-100kN	Electrically	100kN	0.5kN	- do -
IL- 125	0-1000kN	Manually	1000kN	5kN	100mm & 150mm cube & 150mm dia x 300mm high cylinder
IL- 126	0-1000kN	Electrically	1000kN	5kN	-do -
IL- 126.T	0-1000kN	Electrically	1000kN Compression	5kN	-do -
	0-500kN	Electrically	500kN Tension	5kN	-do -
