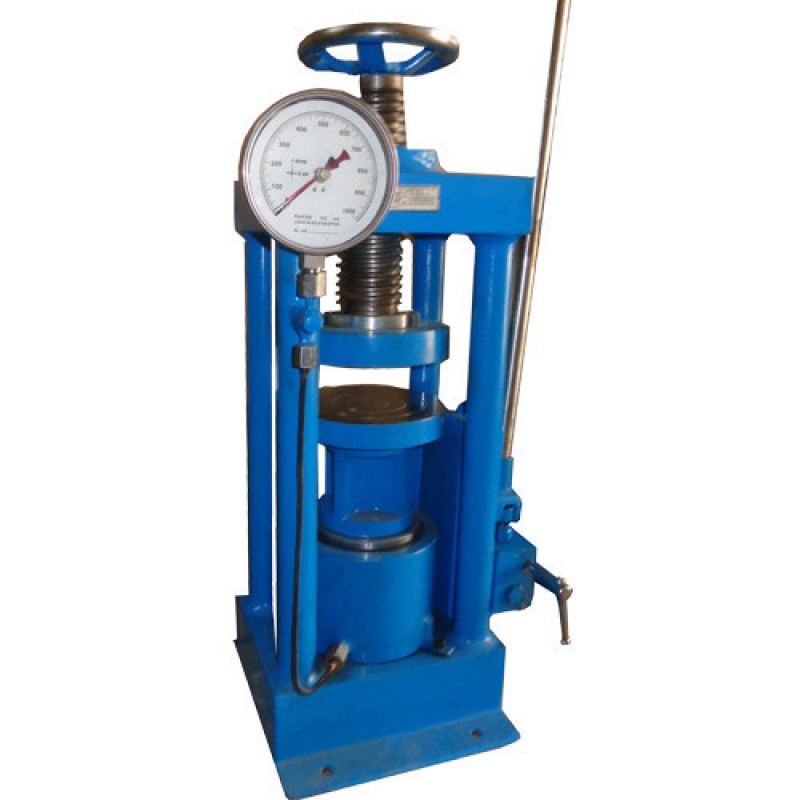

Hand Operated Compression Testing Machine

Product Details:

Material	Steel
Diameter	15 cm
hydraulic pressure gauge	0-2000KN
Model	RSEP-042,043,044,045
Concrete Cube Size	5cm x 5cm x 5cm
Concrete Cylinder Size	15 x 30cm

Compression Testing Machine Hand Operated For Compression test on Concrete or similar materials. Suitable for use on Concrete Cubes of any size upto 5cm x 5cm x 5cm, 7.06 x 7.06cm, 10cm x 10cm x 10cm, and 15cm x 15cm x 15cm also on 10 x 20cm and 15 x 30cm high Concrete Cylinders. The load is applied thru hydraulic assembly. The lower platen is on the Hydraulic ram, an upper having a spherical seating is adjustable. The machine is provided with an air release valve and the load is automatically indicated on the 15 cms diam hydraulic pressure calibrated against an N.C.B.M. tested Proving Ring and fitted with a legless max pointer in addition to the ‘live’ pointer.

RSEP-042:

·         RAJCO Compression Testing Machine, Hand Operated, 25,000 kgf (250 KN, channel) Model: double plunger pump with hydraulic pressure gauge. Our own Calibration

RSEP-043:

·         RAJCO Compression Testing Machine, Hand Operated, 50,000 kgf(500 KN, channel) Model: double plunger pump with hydraulic pressure gauge 0-500 KN Our own Calibration.

RSEP-044:

·         RAJCO Compression Testing Machine, Hand Operated, 100,000 kgf (1000 KN, channel) Model: fitted with double plunger pump with hydraulic pressure gauge. 0-100 KN capacity. Our own Calibration.

RSEP-045:

·         RAJCO Compression Testing Machine, Hand Operated, 100,000 kgf (1000 KN) Pillar Model: fitted with double plunger pump with hydraulic pressure gauge. 0.1000 KN of 200 mm dia our own calibration.

RSEP-046:

·         RAJCO Compression Testing Machine, Hand Operated
·         (200,000 Kgf) (2000 KN) Channel, Model: fitted with double plunger pump with hydraulic pressure gauge. 0-2000 KN capacity Our own Calibration.
