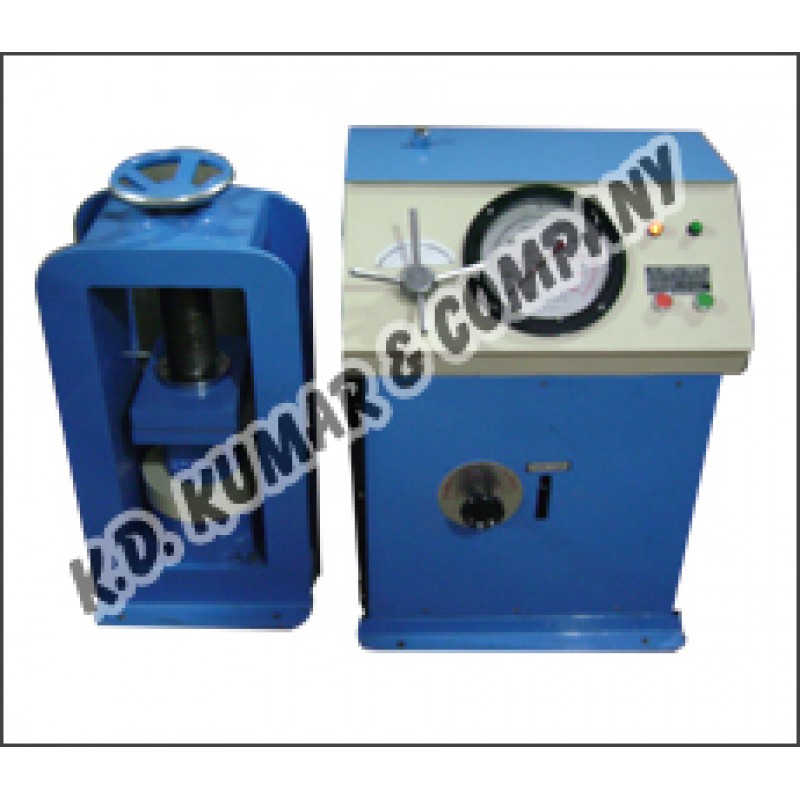

ELECTRICAL OPERATED COMPRESSION TESTING MACHINE WITH SINGLE GAUGE

Product Details :

It is supplied with a pressure gauge calibrate with NCCBM certified proving ring. It is available in Channel Model from capacity 500KN to 3000KN. It consists of a Loading unit & a motorized pumping unit.. A copper connecting tube, capable of bearing high pressure connects the pumping unit to the jack. The testing machine is equipped with a junction box that connects the push-button starter and the motor. The Pressure Gauge is fitted at an angle for easy readability. Micron switch shall switch of the motor automatically as load reaches the rated capacity of the machine. Relay is incorporated, in case of power brake down, the motor shall stop & would not start unless push button is operated. It is nicely spray painted. It also operated by hand in case of electricity is not available.

• Also available in 4 or 2 Pillar model.
