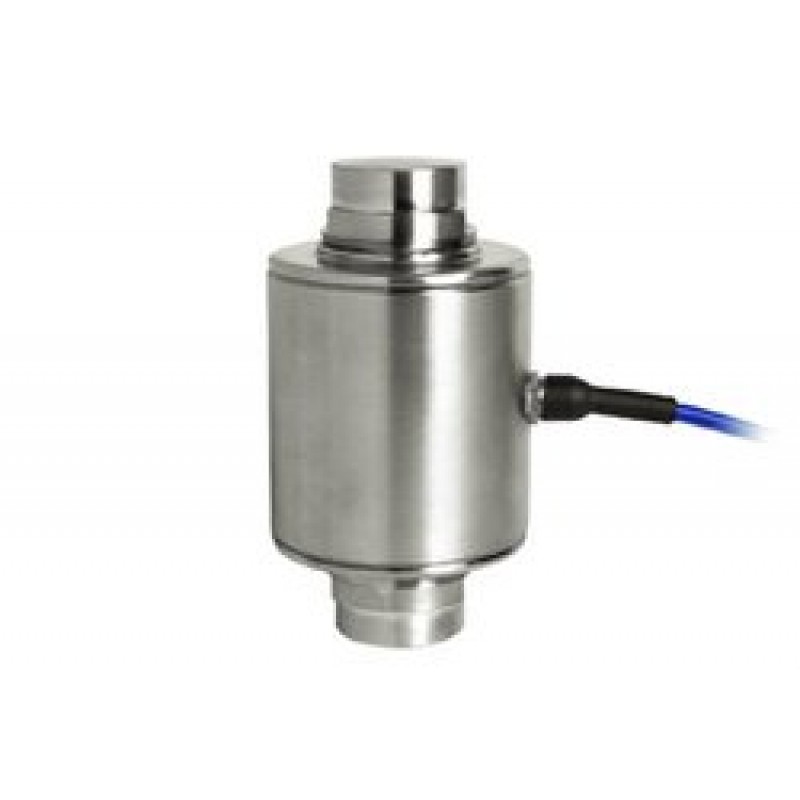

Compression Load Cell
Product Details :
| Brand | Keli |
| Model | ZSF/ZSFY |
| Capacity | 30 Ton |
| Material | Alloy Steel |
| Application | Hopper Scales |
| Features | High sealing performance |
| Load Cell Certifications | OIML |
| Output Sensitivity(FS) | 2.0 +/- 0.002 mV/V |
| Combined Error | +/- 0.03% FS |
| Creep Error (30 minutes) | +/- 0.02% FS |
| Accuracy Class | OIML R60 C3 |
| Temperature Effect on Zero | +/-0.020% FS/DegC |
| Temperature Effect on Output | +/-0.020% FS/DegC |
| Zero balance | +/- 1% FS |
| Maximum Safe Overload | 150% FS |
| Ultimate Safe Overload | 200% FS |
| Recommended Excitation Voltage | 10 to 12V DC |
| Maximum Excitation Voltage | 15V DC |
| Input Resistance | 770 +/- 20 Ohms |
| Output Resistance | 703 +/- 5 Ohms |
| Insulation resistance at 50V DC | >= 5000 M Ohm |
| Compensated Temperature Range | -10 to +40 Deg C |
| Operating Temperature Range | -30 to +70 Deg C |
| Cable Length | 14 m |
Being a leading firm in this industry, we are deeply engaged in offering a high-quality range of Compression Load Cell
Feature
- Stainless steel Construction
- Hermetically welded
- High input resistance
Application
- Truck scales
- railroad scales
- high capacity scales
- silo weighing systems.
Compression Load Cell
- Views: 64
- Vendor: Labteknik
- Product Code: ZSF
- Availability: In Stock
- ₹0
Seller information
Labteknik
- Labteknik
- Hyderabad, India
- Business Type :Trader, Exporter, Importer, Supplier, Manufacturer
