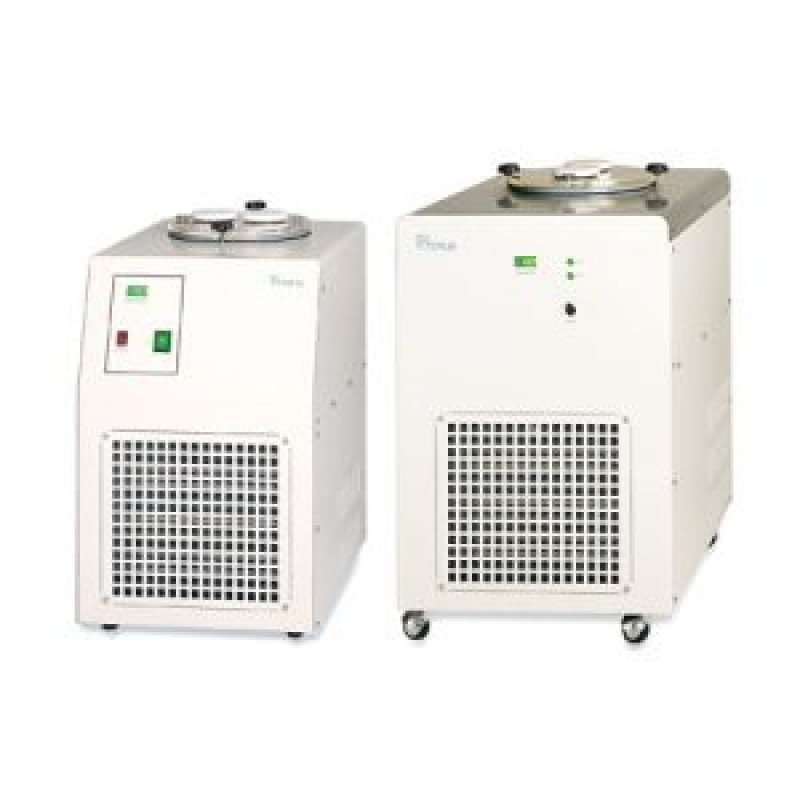

Cold Trap Bath
Product Features:
Effective capture of moisture or condensate also useful as quick cooling baths
Performance
- Temperature control down to ambient to -40℃
- Built-in dissolving system to easily remove ice or solid matter stuck on the bath
Convenience
- LED temperature display
- Easy installation and maintenance of glass traps (two glass traps provided)
- Quick-release front grill for easy cleaning of the condenser
- Compact size and silent operation
- Durable stainless steel bath
- Transparent acrylic lids on top of the glass trap to check condensate level in the trap
Safety
- Complete safety protection system with warning alarms
- Over-temperature, over-current protection
Product Description :
| Model | CTB-10 | |
| Temperature range (℃ / ℉) | Down to – 40 / – 40 | |
| Material | Bath external | Stainless steel, 1.2t, Double painted & baked |
| Bath up desk | Stainless steel, 1.5t | |
| Insulation | Polyurethane foam (30mm) | |
| Refrigerator | 1/2 HP, R-404A (LBP) | |
| Dimension | Volume (L / cu ft) | 4.8 / 0.17 |
| Bath(Ø×H, mm / inch) | 210×204 / 8.3×8 | |
| Glass trap(Ø×H, mm / inch) | 60×262 / 2.4×103 | |
| Exterior (W×D×H) (mm / inch) | 360×465×555 / 14.1×18.3×21.9 | |
| Net weight (kg / lbs) | 46 / 101.4 | |
| Electrical requirements(230V, 50Hz) | 4.5 A | |
| Cat. No. | AAH62012K | |
