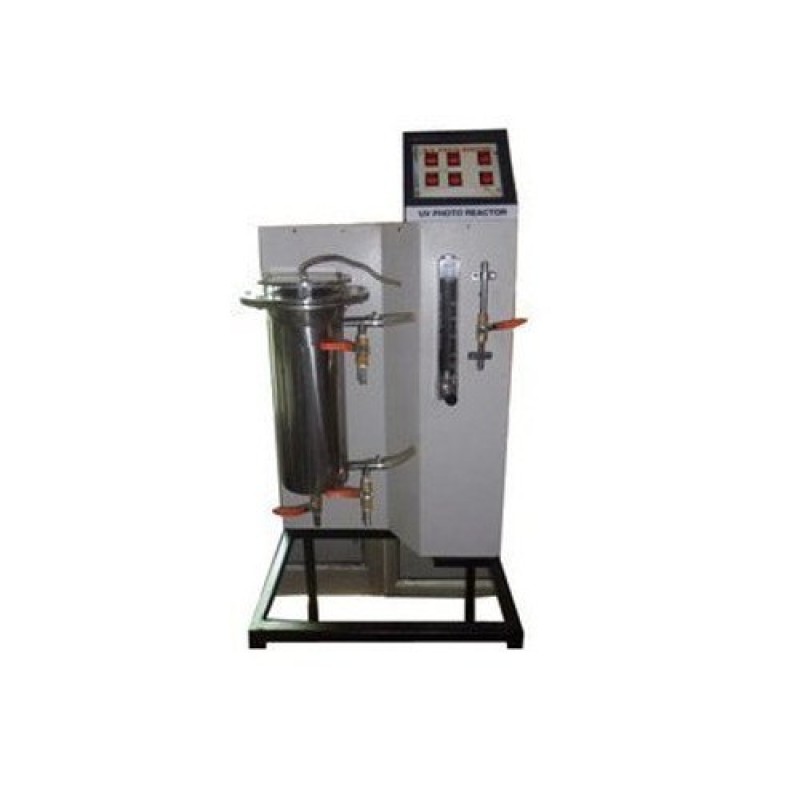

UV Photo Reactor Apparatus

Product Details:

Brand

saini

Description
The set-up is used to study a photo catalytic reaction using a UV source provided in the form of an UV tube. This set-up can be used to carry out a parameter study under batch/continuous flow condition. A photo catalyst like TiO2 can be used. This set-up can also be used to study the mineralization of liquid effluent industrial streams & for purification of water. The set-up consists of reactor with inside reflecting surface. An UV source surrounding glass/quartz cylinder is placed centrally in the reactor
Utilities Required • Electricity Supply: Single Phase, 220 V AC, 50 Hz, 5-15 Amp combined socket with earth connection. Earth voltage should be less than 5 volts. • Water Supply • Floor Drain. • Instruments, Laboratory wares and Chemicals required for analysis as per the system adopted
Technical Details
UV Source : 30 W / 16 W • Reactor : With inside reflective surface. Effective volume of reactor 1-1.5 Ltrs. • Feed Tank : Material Stainless Steel, Capacity 5 Ltrs. • Feed circulation : Magnetic Pump made of Polypropylene. Maximum working temperature 80°C. • Flow Measurement : By Rotameter • Control panel comprising of : Standard make on off switch, Mains Indicator, fuse, power supply to UV source etc. • Sampling points are provided at inlet & outlet of reactant line. • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
