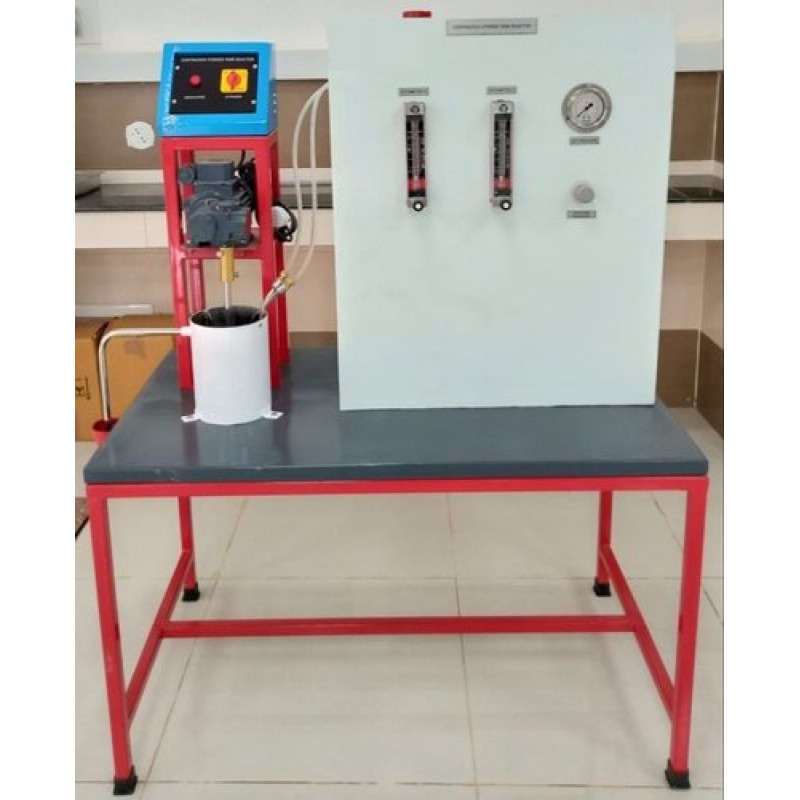

Continuous Stirred Tank Reactor
Click Image for Gallery
Continuous Stirred Tank Reactor
Continuous Stirred Tank Reactor
Product Details:
Brand
saini
Country of Origin
Made in India
model number
SSICRE-001
- Reactor
Material Stainless Steel, Capacity 3.5 Ltrs (Approx). Diameter :- 200 mm Height :- 300 mm
- Stirrer
Stainless Steel Impeller and shaft coupled with FHP Motor.
- Feed Tank (2Nos.)
Material Stainless Steel, Capacity - 25 Ltrs. (Approx). Size :- 250x250x400 mm
- Feed Circulation
By compressed air.
- Flow Measurement
Rota-meter - 2Nos. (one each for Reactants).
- Piping
Stainless Steel and PU pipe.
- Pressure Regulator
0-2 Kg/cm2
- Pressure Gauge
Bourdon type 0-2 Kg/cm2
Description
SAINI SCIENCE INDUSTRIES manufacture of Continuous stirred tank reactor apparatus (Compressed Air Feed System).
SAINI SCIENCE INDUSTRIES is counted among the listed manufacturers, supply and exporters of premium quality of Continuous stirred tank reactor apparatus (Compressed Air Feed System). In an ideal CSTR (i.e. an ideal steady state flow reactor) the contents in reactor are well mixed and have uniform composition throughout. Thus the exit stream has the same composition as the fluid within the reactor. This type of reactor is known as mixed flow reactor. This setup is used to study a non-catalytic homogeneous second order liquid phase reaction under ambient condition. The set up consists of two feed tanks through which two reactants are fed to the reactor. Rota-meters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rota-meter. The compressed air is used for circulation of feed. The CSTR is fitted with stirrer for proper mixing. From top outlet of it samples are collected for analysis. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line
