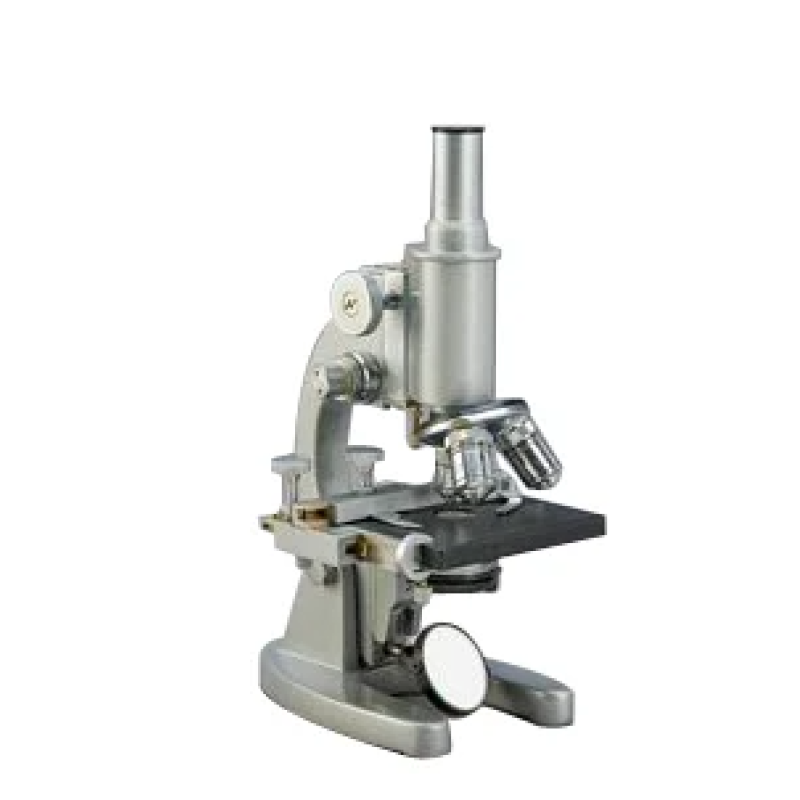

Chemistry Lab Microscope
Product Details:
With our spacious experience & knowledge, we are engaged in manufacturing and supplying a wide range of Chemistry Lab Microscope.
Salient Features:-
Base: Stable and robust, traditional horse shoe base.
Body: Inclined through 90 standard tube length of 160mm.
Focusing: Separate coarse and fine motion knobs with graduation on one side. Coarse movement by rack and pinion and fine movement by screw lever mechanics.
Nose piece: Triple revolving nose piece is provided with positive click stop for.
Stage: Fixed square stage 110x110 mm with stage clips to hold the side proper centering.
Illumination: Illumination through a 50 mm diameter Plano concave mirror mounted on gimbal mount.
Objectives: Two achromatic objectives of 10x and 45x and 100x(oil, sl)
Eyepieces: Two huygenian eyepieces of 10x and 15x
Condenser: Movable condenser is provided with iris diaphragm having 1.2 N.A
