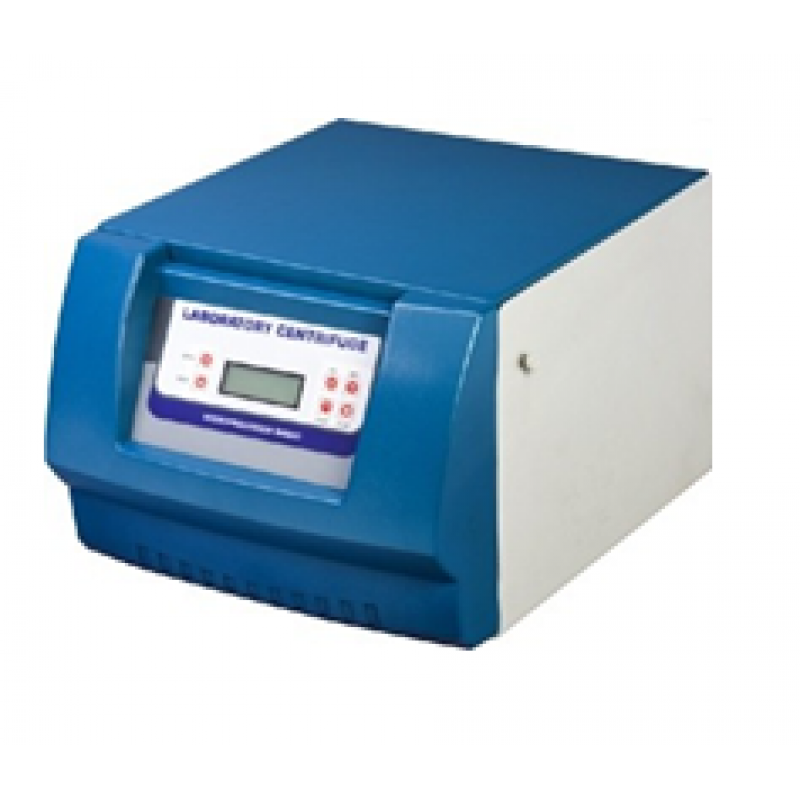

Microprocessor Brushless 6000 RPM
Model: GI-63
- Heavy duty C.R.C. construction finished with powder coating
- Fitted with brushless automatic balanced motor
- Microprocessor based, 4 lines, 20 characters. LCD Display of set time, run
- time, set and run rpm, rcf.
- Equipped with 0-99 minute timer.
- Programmable speed regulator to control speed from 500 to 6000 r.p.m depending upon the type of rotor & Fast spin option.
- 50 programmes can be stored in memory.
- Automatic rotor identification on display.
- Additional electronic lid lock which does not allow to open lid when machine is running.
- Dynamic brake (automatic) and imbalance detector are provided.
- Selection of 3 acceleration + 4 deceleration profile.
Technical Parameter :
Max
Speed | Max CRF | Motor | Noice | Power |
6000 rpm | 4390xg | Brussless | <65dB | AC 220V 50 Hz 15A |
Rotor ( at extra cost)
Rotor
Type | Angle heads | Angle heads | Angle heads | Angle heads | Angle Bucket Rotor | Swing out Rotor |
Rotor Capacity | 24 x 15 m | 24 Vacuutainers | 32 tubes-12x75mm | 32 tubes-12x100mm | 4x100ml / 4x50ml | 16x15ml / 12x15ml |
Speed on Rotor | 4000 | 6000 | 5000 | 6000 | 5200 | 5200 |
RCF
on Rotor | 2760xg | 4140xg | 4140xg | 4140xg | 3450xg/ 4390xg | 3588xg |
