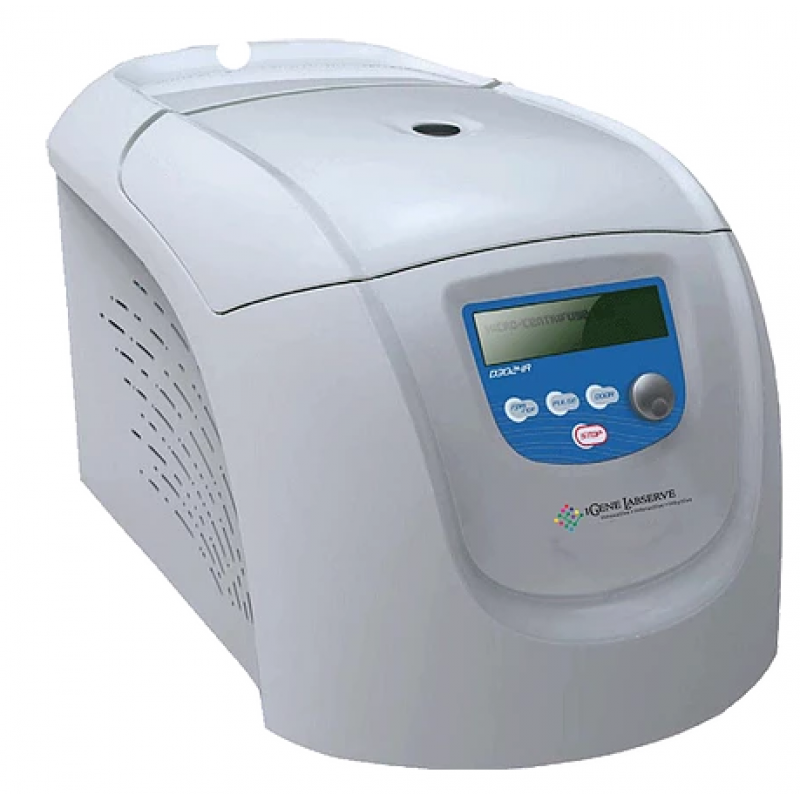

Refrigerated Microcentrifuge IG243R
Product Details :
Features and Benefits :
- Powerful cooling system for precise temperature control
- Pre-cooling program ensures optimal protection of the sample before warming
- Guaranteed 7°C cooling within only 7 minutes of both chamber and samples even at maximum speed and capacity utilization
- Sound-alert allows your undivided attention on other tasks warming
- Lid lock facility allows for internal temperature maintenance even after centrifugation
- There-layer sealed rotor accidental leakage during centrifugal process allowing risk- free microbial contamination
- High strength aluminium alloy rotor can be fully autoclaved for unlimited service life
- Four rotors are optional complete with 24 place 1.5/2.0mL tubes, bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with the use of adapters
- Quiet running, noise level ≤ 54dB
Technical Specifications :
Specifications | IG-243R |
Max. Speed | 15000rpm(200-15000rpm), increment:10rpm |
Max. RCF | 21380×g, increment:10×g |
Speed Accuracy | ±20 rpm |
Temperature Range | -20ºC-40ºC |
Rotor Capacity | 5mL×18, 5mL culture tubex12 0.2mL/0.5mL/1.5mL/ 2mL×24,0.5mL×36, PCR8×4 |
Run Time | 30sec-99min/Continuous |
Motor | Brushless DC motor |
Safety Devices | Dual door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis |
Power | Single-phase,AC220V-240V, 50Hz/60Hz, 10A,400W |
Acceleration/Braking time [Sec] | 25s↑25s↓ |
Dimension [D×W×H] | 338×580×324mm |
Weight | 30kg |
Certification | CE cTÜVus FCC MCA |
Advanced Features | Speed/RCF switch; Short-time run function; sound- alert function |
Rotors and Accessories :
IG-243R | High Speed Refrigerated Micro-Centrifuge，with IS24-2 aluminum alloy rotor kit (package contain in the box) |
IS18-5 | Aluminum alloy rotor kit with lid fixing clips and O'ring, 15000rpm, 5ml*18, |
IS12-5V | Aluminum alloy rotor kit with lid fixing clips and O'ring, 15000rpm, 5ml*12(eppendrof tube), |
IS24-2 | Aluminum alloy rotor kit with lid fixing clips and O'ring, 15000rpm, 2ml/1.5ml*24 |
IS36-05 | Aluminum alloy rotor kit with lid fixing clips and O'ring, 15000rpm, 0.5ml*36 |
IS4-PCR8 | Aluminum alloy rotor kit with lid fixing clips and O'ring, 15000rpm, 4*PCR8 |
I02P2 | 2ml to 0.2ml rotor adapter, used with S12-2, S12-2P, IS24-2 and S24-2P rotors，24pcs/pk |
I05P2 | 2ml to 0.5ml rotor adapter, used with S12-2, S12-2P, IS24-2 and S24-2P ro |
