REMI Heavy Duty Centrifuges

Product Details:

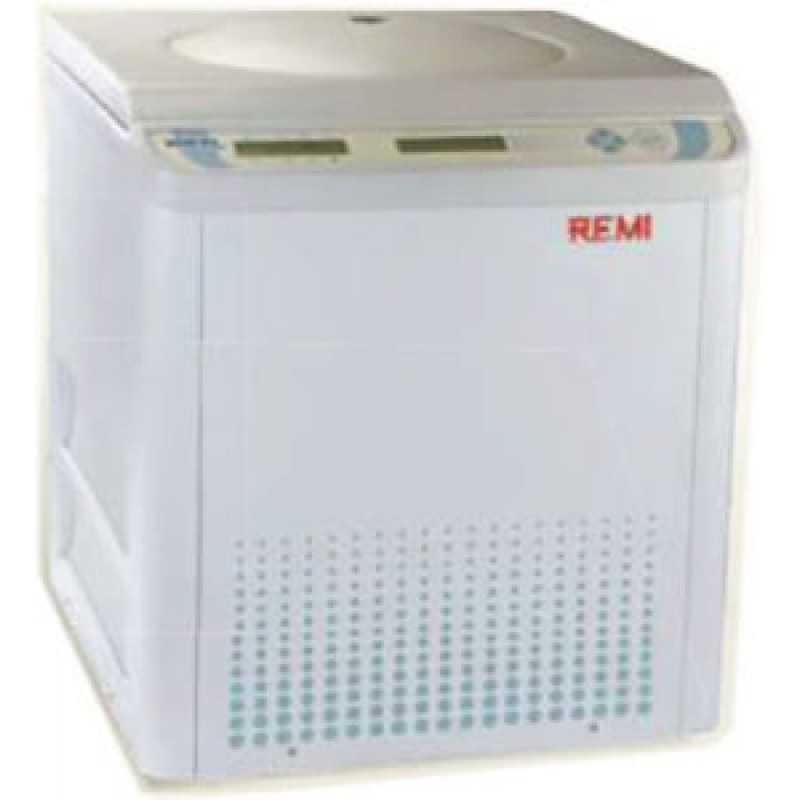

KPR-70 Plus

KPR -70 Plus is a new generation Centrifuge with built in system for storage of centrifugation data. These Centrifuges are used in clinical laboratories, pharmaceutical industries, research laboratories, general biochemical work etc. Advance manufacturing techniques are used for mounting of new Brushless induction drive motor resulting in low level of vibration and noise with smooth acceleration / deceleration. The durable high capacity refrigeration system maintains precise operating temperature.

Data Acquisition System

KPR-70 Plus has a built in system to collect all data of the centrifugation process. The data from the centrifuge transferred to Personal Computer using a data interface like Operator code, process type, Time, Temp., RPM, RCF, Acceleration, Deceleration & Status of the process etc. can be acquired.

MICROPROCESSOR CONTROLLER

KPR – 70 Plus has user-friendly controls that make setup & Operation mode simple like Setting of RPM or RCF, Temperature, Timer, Acceleration, Deceleration etc. Soft touch keypad with large LCO display panel is located at the front. KPR 70 plus stores & recalls up to 51 programs that can be programmed. User friendly microprocessor controller allows interactive menu driven programming & keeps the operator continously informed of the centrifuge operation status. Unique facility for setting and controlling the centrifuge run either by rpm [speed] or RCF [g force], eliminating the need of calculations & can set timer from 1 minute to 99 minutes Si also has 10 Acceleration & 9 Deceleration profiles for smooth &. jerk free run for optimum yield under different applications.

SALIENT FEATURES:

• Menu driven 51 program memory
• Programmable centrifugation parameters for accurate control
• Tamper proof memory
• Password Protection for authorized access.
• Lid closing & opening with the help of Gas Hinges.
• Safety lid-interlock to prevent cover opening during centrifugation
• Unbalance cut-off with indication
• Simultaneous display of set & run parameters

Technical Data
Models		KPR-70 PLUS
Max. Speed	rpm	4500
Max. rcf	‘B’	5230
WXDXH	mm	805 X 905 X 960
Lowest Temp.	°C	0
Connected load	KVA	6
Voltage Stabilizer	Model	VS – 06
