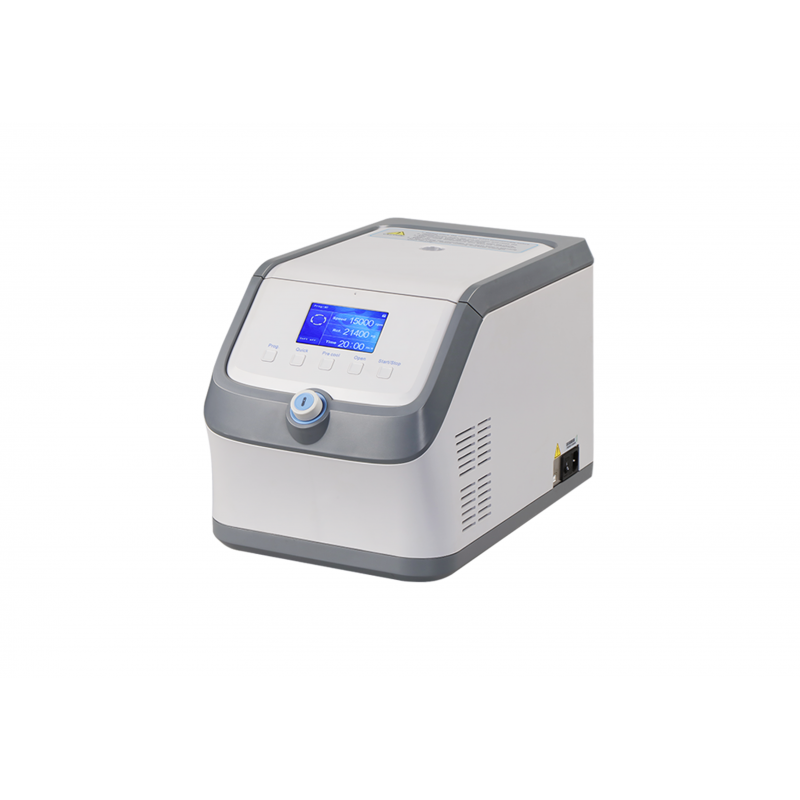

High Speed Centrifuge — iCen-24R

iCEN-24R high speed centrifuge with 24-place capacity rotors are the new designed for the laboratory centrifuge. Their speed up to 15,000 rpm(21,400×g), allows for molecular biology applications in 0.2 ml, 0.5 ml, 1.5 ml, 2.0 ml, 5.0 ml and PCR tubes. Both models have the soft-brake function to protect sensitive samples. Refrigerated centrifuge iCEN-24R features state of the cooling function to ensure energy efficiency and high temperature accuracy for maximum sample protection. Temperature control range -10 °C to 40 °C; 4 °C can also be maintained at the highest speed. In static precooling mode, when the centrifuge cover is closed, the compressor automatically starts to cool.

• Ultra-quiet operation, low noise level, noise<60 db

• Soft-brake function to protect sensitive samples

• Maximum capacity 24×1.5 ml/2.0 ml; centrifuge tube maximum centrifugal force 21,400×g

• Imported motor, maintenance-free

• LCD display with time, speed and RCF

• Separate short-spin key for quick centrifugation

• Automatic lid opening at the end of run - prevents sample warming and allows easy access to samples

• 3 different rotors are available, adapt tp 0.2, 0.5, 1.5, 2.0, 5.0 ml centrifuge tubes and PCR tubes

• High-strength aluminum alloy rotor, no service life limit, can be sterilized at high temperature and high pressure

• Safe and reliable, various safety protections with CE safety standard

•Fast lifting speed, with 15 s to rise to the maximum speed, and with 15 s to drop from the maximum speed to 0

• Strong cooling capacity, can maintain 4 ℃ at the highest speed

• Fast Temp. for rapid pre-cooling of the centrifuge, less than 20 min from RT. to 4 °C

• Temperature control range: -10 °C to 40 °C

• In static precooling mode, when the centrifuge cover is closed, the compressor automatically starts to cool

Specifications :

• Model
  iCEN-24R
• Speed (rpm)
  500~15,000 rpm (increment 100 rpm)
• Maximum centrifugation medium density
  1.2 g/ml
• Acceleration and deceleration time (Soft off)
  ≤15 s
• Acceleration and deceleration time (Soft on)
  45 s
• Max. capacity
  24×1.5 ml/2.0 ml
• Maximum rotor diameter
  85 mm
• Maximum capacity
  4×PCR tube rotors
• Maximum rotor diameter
  68 mm
• Maximum capacity
  12×5 ml (for round-bottom test tubes) rotor
• Maximum rotor diameter
  85 mm
• Max. RCF
  100-21400×g 100-17100×g 100-21400×g
• Temperature control accuracy (at 4 °C)
  ±2 ℃
• Time down from ambient temperature to 4 °C (At the highest speed running)
  ≤20 min
• Temperature range
  -10 °C to +40 °C
• Max. power
  500 W
• Dimension (W×D×H) mm
  300×500×320
• Weight with one rotor
  28 kg
• Timer
  1 s-99 min59 s (short-spin)
• Power supply
  AC100-120 V/AC200-240 V 50-60 Hz
