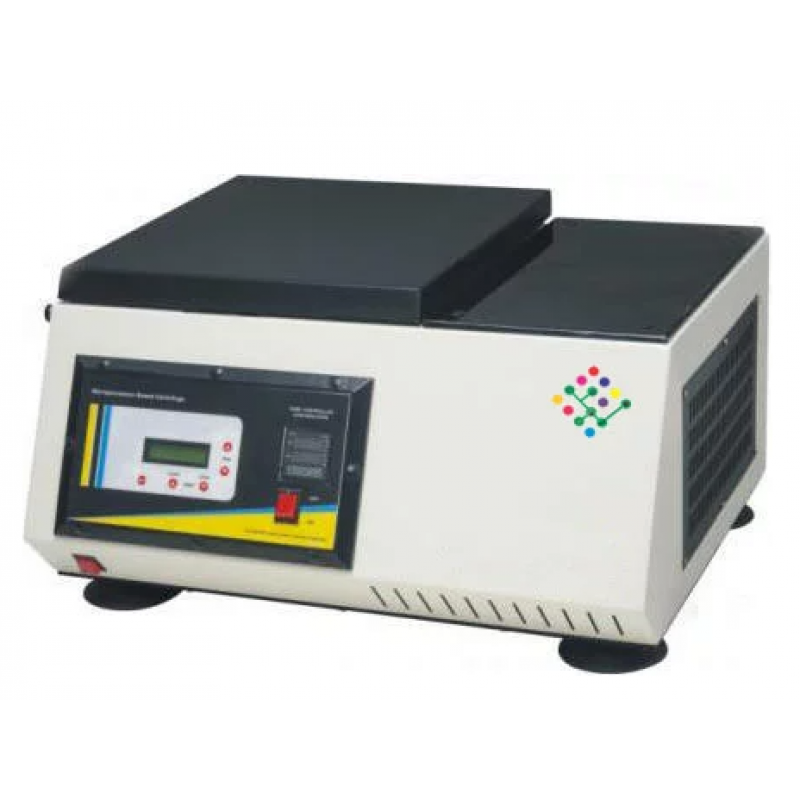

High Speed Centrifuge IG-T55LB
Features and Benefits :
- Bench Top high speed Refrigerated Micro Centrifuge machine.
- PID Electronic digital temperature controller cum indicator is fitted to control the
- centrifuge temp from room temp upto -20˚ C means shuts off the cooling compressor within accuracy of ±2˚ C.
- Microprocessor control, digital indicator for speed, temperature and time, running parameters can be edited and changed to RCF.
- Heavy duty C.R.C. construction finished with powder coating Stainless Steel centrifugal bowl for extra protection and easy cleaning.
- Fitted with well-balanced brushless motor with electronic drive.
- Digital timer 0-99 minutes, lid lock. 4 lines 20 characters LCD disp ay for set time, run time, set & run rpm, rcf and rotor identification.
- 50 programmes can be stored in memory and automatic rotor identification on display.
- Additional electronic lid lock who does not allow opening lid when machine is running and opens automatically after centrifuge time is over.
- Dynamic brake (automatic) and imbalance detector are provided.
- Fast spin option. Selection of 3 acceleration + 4 deceleration profile.
- Programmable Speed Regulator from 2000 to 16000 in interval of 100 rpm
- Last test parameter recall and displays automatically on LCD
- Supply with instruction manual, cord & plug to work on 220 volts 50Hz A.C.
Technical Specifications :
Max speed | 16000rpm | Max RCF | 23000xg |
Max volume | 4x100ml ~ | Temp Range | +4 ºC to -20 ºC |
Timer | 0 99min |
|
|
Dimension | L25”x W20” x H14” | Net weight | 55KG |
Speed accuracy | ±20rpm | Power supply | AC 220V 50HZ 10A |
Order No. | Rotor | Max speed(rpm) | Max capacity | Max RCF(xg) |
IG-T55LB1 | Angle rotor | 16000 | 24*1.5/2.2ml | 23000 |
