Cascade Control Trainer

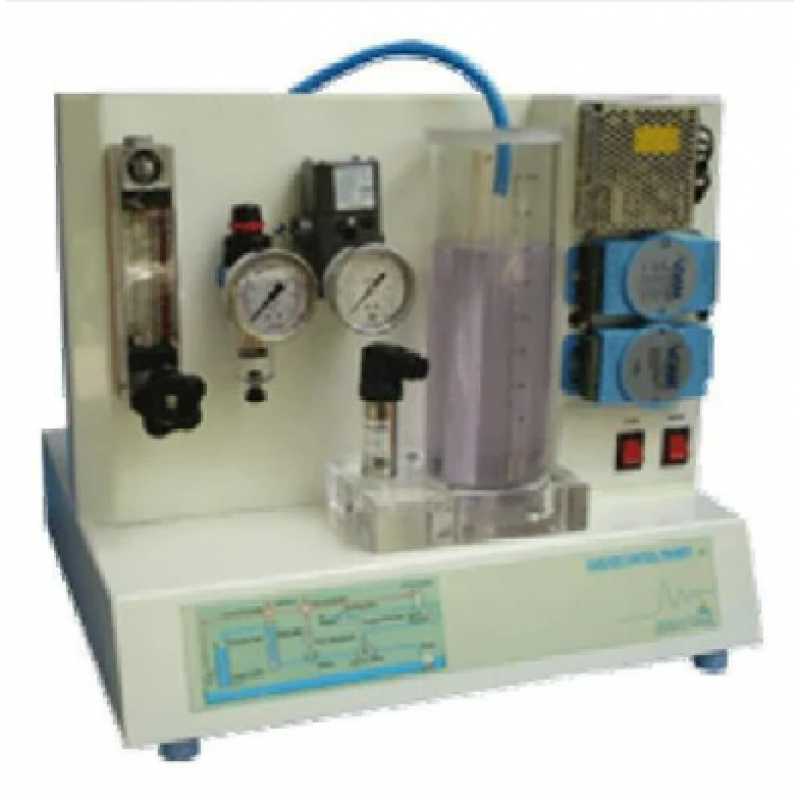

The setup is designed to understand the advanced control methods used for complex processes in the industries. Different experiments like Flow, level and cascade control can be configured and studied with the setup. It consists of water supply tank, pump, level transmitter, transparent level tank, orifice meters with differential pressure transmitters, rota meters, pneumatic controlvalve, I/P converter and serial based dual loop controller. These units along with necessary piping are mounted on support housing designed for tabletop mounting.

Features:

• Flow, Level and Cascade control
• ON-Off & PID operation
• SCADA study
• MODBUS communication
• Closed loop water circulation
• Non-corrosive wetted parts

Range of experiments

• Study of open loop response (Manual control)
• Study of on/off controller
• Study of proportional controller
• Study of proportional integral controller

Utilities required:

• Electric supply 230 /- 10 VAC, 50 Hz, 1 phase.
• Water supply Distilled water @10 liters
• Air supply Clean, oil and moisture free air, pressure 2 Bar, consumption 50 LPH
• Computer IBM compatible with standard configuration
• Support table Size: 800Wx800Dx750H in mm

Specifications:

Product	Cascade control trainer
Product Code	MI 315A
Control unit	Analog input 4, Analog output 2, Digital input 2, Digital output 2. with RS485 communication.
Communication	USB port using RS485-USB converter
Differential pressure transmitter	Type Capacitance, two wire, Range 0–200 mm, Output 4–20 mA sq.root
Level transmitter	Type Electronic, two wire, Range 0–250 mm, Output 4–20mA
I/P converter	Input 4-20mA, Output 3-15 psig
Control valve Type	Pneumatic; Size: 1/4", Input: 3–15 psig, Air to close, Characteristics: linear
Rotameter	10-100 LPH
Pump	Fractional horse power, type submersible
Process tank	Transparent, Acrylic, with 0-100% graduated scale
Supply tank	SS304
Flow measurement	Orifice meter
Air filter regulator	Range 0-2.5 kg/cm2
Pressure gauge	Range 0-2.5 kg/cm2(1No), Range 0-7 kg/cm2(1No)
Overall dimensions	550Wx475Dx520H mm
Optional	SCADA software package; Mini Compressor
