Capacitance Type Level Indicators
Product Details:

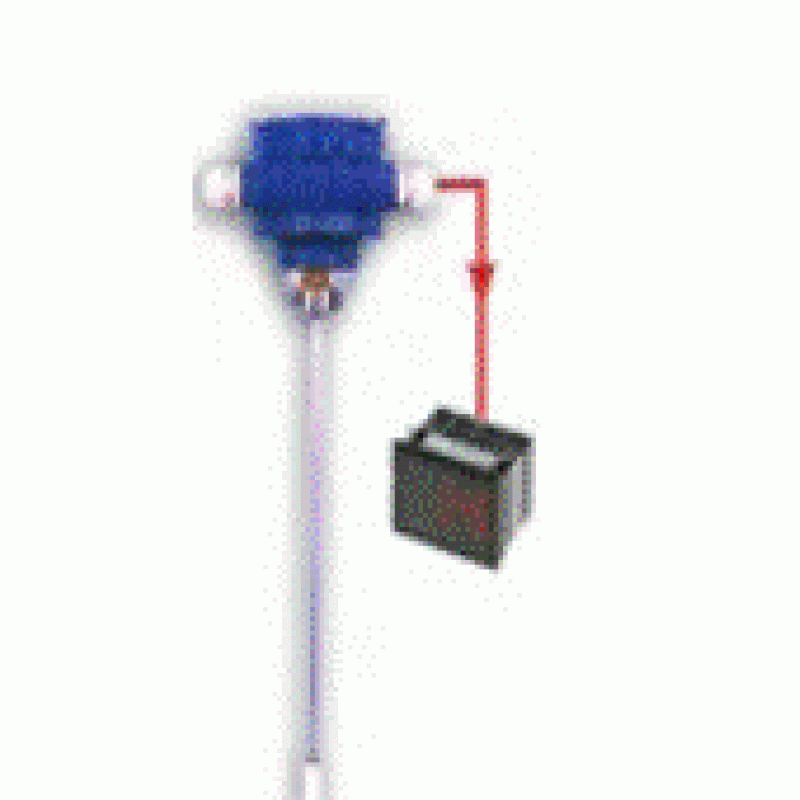

Capacitance Type Level Indicators

These type of Indicators are used for all types of liquids (without Moisture, Fumes and Foam)

Working principle : Capacitance

This instrument works on principle of change in Capacitance between two metallic surfaces. The Sensing Probe would be SS rod coated with PTFE and the Metallic Tank would be considered as Reference. We have the Capacitance type Level Transmitter suitable even to operate in non-metallic tanks

Accuracy : 1% FSD

Mounting : from Top of the tank

Level Indication : Digital through a Integrated or, Panel mounted Indicator (needs external power supply)

Max.sensing length of the transmitter : up to 3 meters with Rod and up to 10 meters with Rope

Sensor MOC : PFTE coated SS 316 (Rod type probe or, Rope type probe)

Process connection: Threaded, flanged or, Triclover connection

Electrical Terminal Housing : Weather proof Aluminium or, flameproof

Output of the transmitter : 4 to 20 mA

Power Supply : 24 V DC (2 wire)

Max. Fluid Temp. : up to 150 degree C

Max. Fluid Pressure : 10 Kg/cm2

If temperature is continuously varying, capacitance level indicators are not recommended.
