CUT SECTION OF FUEL INJECTION PUMP & INJECTOR (CUTE 016)

SYSTEM DESCRIPTION

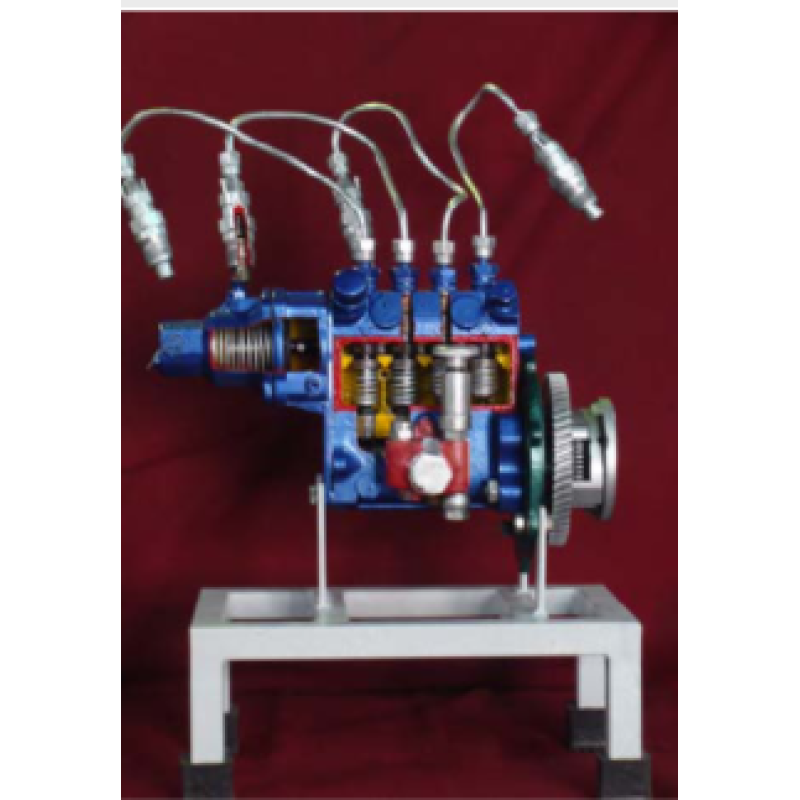

S P Tech Equipments have designed the systems, keeping in consideration that all components are exposed & painted with different colour. This makes easy understanding of operation of system. The unit is cut section of an actual Diesel Injection Pump. The unit is manually operated through a handle show all movement of internal parts. The unit is carefully sectioned to show all internal detail and is assembled on M.S. frame.

SYSTEM COMPONENTS:

• Diesel Injection Pump with all components like , cam shaft, piston, valve, holder governor etc.
•  Fuel circuit
•  Injector
