C 2000 Basic Version 1

Product Details :

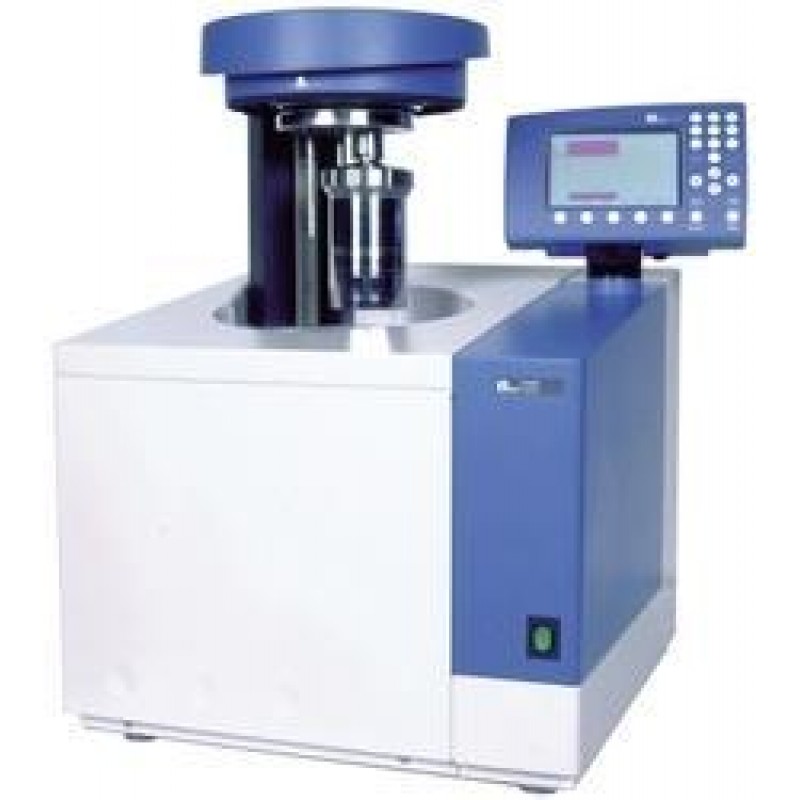

The C 2000 basic IKA- calorimeter is a combustion calorimeter for determining gross calorific values of liquid and solid samples. A high level of automation with extremely simple handling characterizes this instrument. In addition to the isoperibolic measurement procedure (static jacket), a dynamic (reduced-time) working method is also available. To provide the calorimeter with cooling water, it needs to be connected to a thermostat f.e. IKA KV 600 ( accessory) or a firmly installed water connection. The C 2000 basic is equipped with a very convenient console to operate the unit.

Feature:

• Automatic water handling system includes tempering, filling and emptying of calorimeter inner vessel
• Automatic oxygen filling of decomposition vessel
• Automatic decomposition vessel identification
• Automatic sample ignition
• Validation according to DIN 51900,ISO 1928, ASTM D240, ASTM D4809, ASTM D5865, ASTM D1989, ASTM D5468, ASTM E711
• Working methods: isoperibol, measurement time: approx. 22 min / dynamic, measurement time: approx. 7 min
• Compact, integrated modular design for convenient operation
• Cooling water supply via thermostat f.e. IKA KV 600 (accessory) or firmly installed water connection (C 25 pressure regulating valve recommended)
• Interface connections for each of the following: scale, printer, monitor and sample rack C 5020
• User-friendly software C 5040 Calwin for controlling the calorimeter and administration of measuring data
• Up to eight measurement cells can be controlled by a single PC, using a multi-serial plug-in card PCI 8.2 (accessory)
• LIMS integration is possible
• Special halogen resistent vessel for quantitative decomposition of halogens and sulfur ( accessory)
• The decomposition vessel can be changed over to use combustible crucibles C 14 ( accessory C5010.4 is needed)
• Consumables for calibrations and initial operation are included with delivery.
