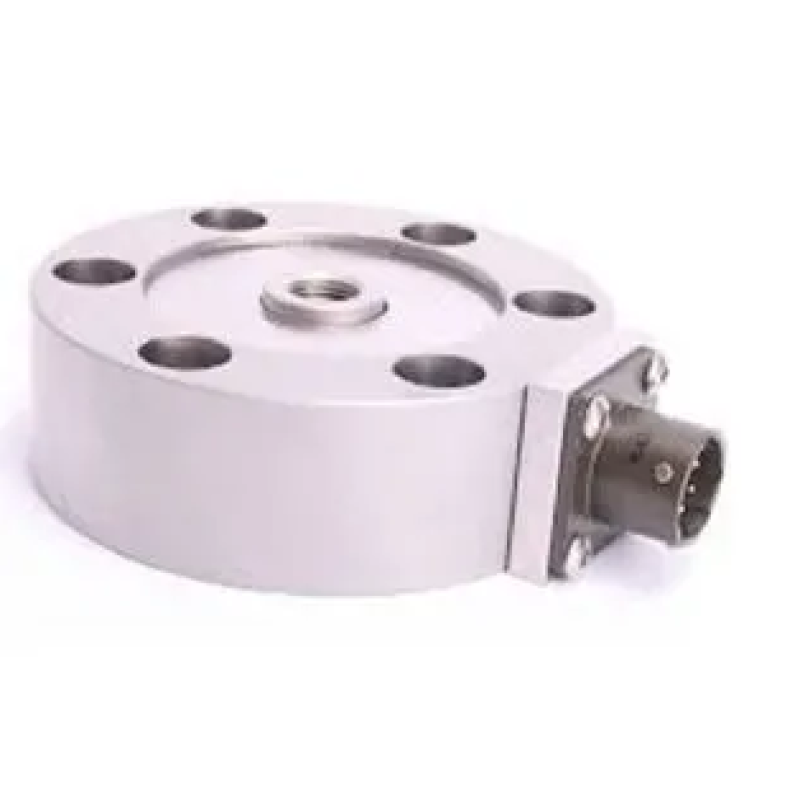

Button Load Cell
Product Details:

Brand	ADI
Model	90610-T
Capacity	500 Ton
Material	Stainless Steel
Ingress Protection	IP65
Application	Industrial Automation
Features	Low profile
Output Sensitivity(FS)	2.0 +/- 0.002 mV/V
Creep Error (30 minutes)	+/-0.04% FS
Temperature Effect on Zero	+/-0.005% FS/DegC
Temperature Effect on Output	+/-0.005% FS/DegC
Zero balance	+/- 1% FS
Maximum Safe Overload	150% FS
Ultimate Safe Overload	250% FS
Recommended Excitation Voltage	5 to 15V DC
Maximum Excitation Voltage	15V DC
Input Resistance	770 +/- 20 Ohms
Output Resistance	390 +/- 10 Ohms
Insulation resistance at 50V DC	>= 1000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Operating Temperatue Range	-20 to +70 Deg C
Cable Length	5 m

Our organization is highly rated in offering Dynamic Load Cell to our clients. This product has sturdy construction and is made by experts who have employed excellent material and technique for this. It is reckoned for its durability and is offered in various specifications. This product is suited for high frequency transmission or compression force measurement applications. We are offering it at market leading price.

Features:

• Completely tested
• Compact surface

• Free from defects
