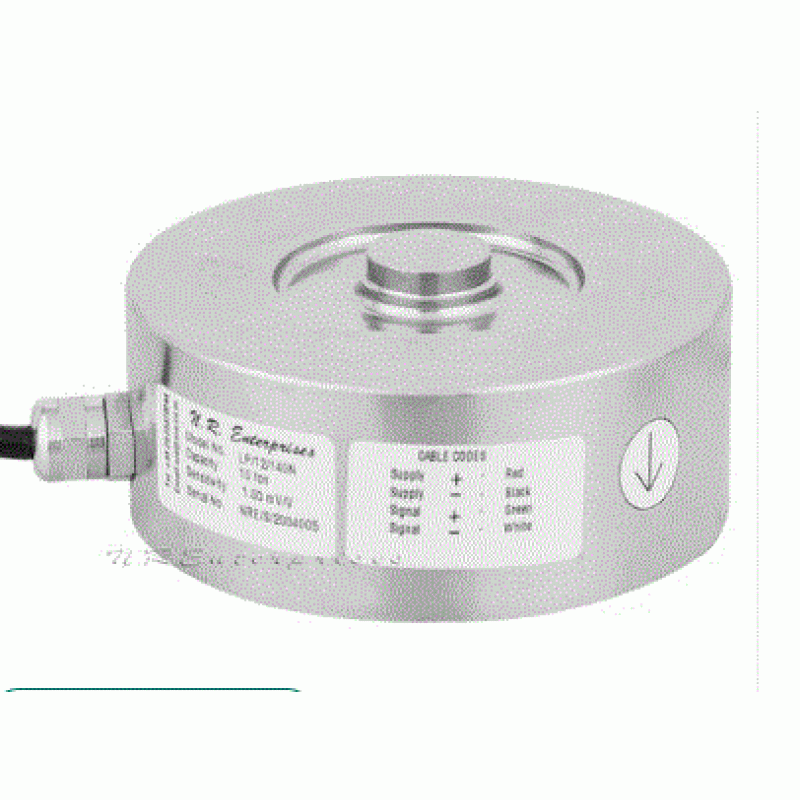

Button Load Cell
Product Details:

Material	Stainless Steel
Ingress Protection	IP66
Capacity	5 kg to 500 tons
Features	High Accuracy & Precision
Zero balance	+/- 1% FS
Maximum Safe Overload	150% FS
Ultimate Safe Overload	200% FS
Recommended Excitation Voltage	5 to 15V DC
Insulation resistance at 50V DC	>= 1000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Operating Temperatue Range	-20 to +70 Deg C

NRE is the leading manufacturer & exporter of Button Type Load Cells. These load cells are of the finest manufactured quality adhering to international standards. We select and recommend the load cells that are most suitable for a given application depending upon the customer requirement.
We have a range of button load cells right from 1 kg to 50 t capacities & even higher capacities available on request.
Salient Features:
Safe Overload - 150% of Full Scale
Ultimate Overload - 200% of Full Scale
Envinronmental Protection - IP67
High Grade Alloy Steel/Stainless Steel MOC
