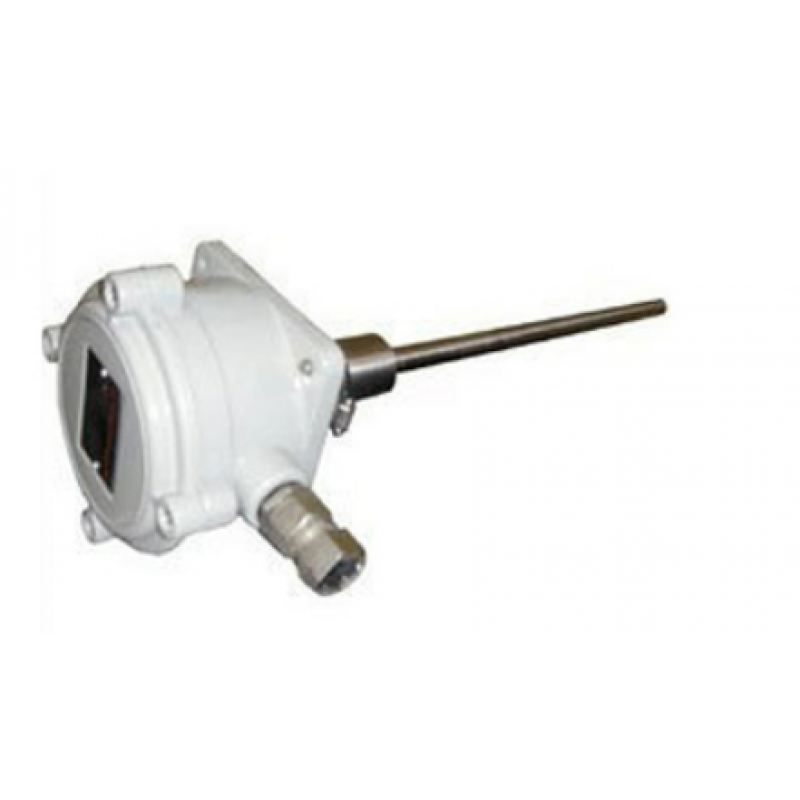

Broken Bag Detector

Product Details:

Power Consumption	4-20 mA
Country of Origin	Made in India
Measurment Range	0-1000 Mg/M3
Probe Material	316 Stainless Steel
Required Voltage	18 - 32 V DC At The Unit 230V AC (Controller)
Probe Insertion Length	3 Inch

Broken Bag Detector is a device that is mounted in the discharge stack of a dust collector and continuously monitors the amount of particulate discharge. The particulate monitor uses a technology known as Triboelectric or Triboelectricity. When two different materials come in contact, it is likely that one will leave with more electrons than it started with and the other will leave with less, this is called Triboelectric Effect. The interaction between the probe and particles produces a charge transfer within the probe. The charge is then converted to an output signal. The advanced electronics of the Monitor detect this signal and present it to the operator via a modulating Graphical display.
Specification :

• Range 0-1000 Mg/M3

• Sensor Base Systems Style

• Remote Sensor Enclosure: Cost Aluminum, Electrostatically powder coating

• Probe Material: 316 Stainless Steel (Slandered) other materials available

• Insulator material: Extended High Performance (PFA) Temperature up to 250 C Ceramic (High temperature up to 550 Deg C )

• Electronics 18 – 32 V DC () at the unit 230V AC (Controller)

• Output: 4-20mA & SPDT Relay

• Probe Insertion length: 3” to 36” ( 7.6 Cm to 91.4 Cm)

• Installation Weld the supplied fitting into the pipe or Duct and insert Sensor

• Sensor Mounting Flanged: ½” Male NPT Quick release.

Additional Information:

• Packaging Details: Normal packing with thermocol
