Brinell Load Cell Hardness Tester
Product Details:

Parameter	HB
Display Type	LED
Model Number	LCB3100, LECO LCB3100
Accuracy	Conforms to ASTM-E10 and ISO 6506
Dimension	8 in W x 21 in D x 32 in H (220 mm W x 550 mm D x 810 mm H)
Weight	Approx 300 lb (136 kg)
Power	Single phase, 100 V~ to 240 (auto detected), 50/60 Hz
Brand	Leco
Selectable Loads	62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 2000, 2500, 3000 kgf
Usage	Determines the hardness of a metal by measuring the size of an indentation left by an indenter
Application	Laboratory

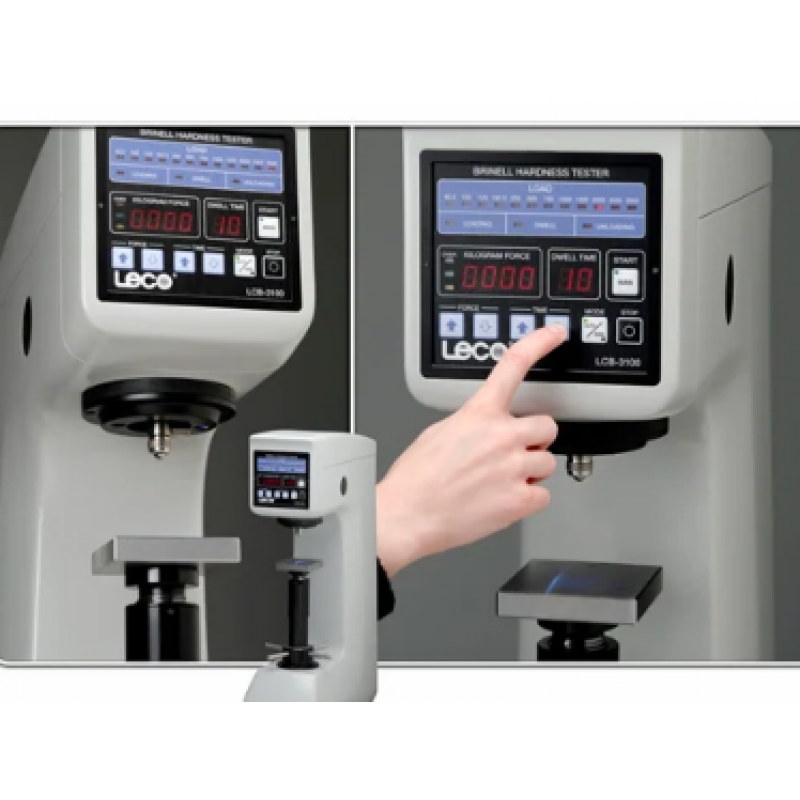

Using state-of-the-art load cell technology, this is one of the most versatile and easy-to-use Brinell hardness testers available. Operation is handled through a user-friendly touch-pad, the stacking of weights typically associated with most testers. Simply choose the load on the operation panel and let the tester do the rest.

Features:

• Heavy-duty cast housing with enclosed load cell
• Direct load method with load-cell feedback

• Auto-apply, -hold, and -removal of loads
• Selectable dwell times

• User-friendly touch-pad operation panel
