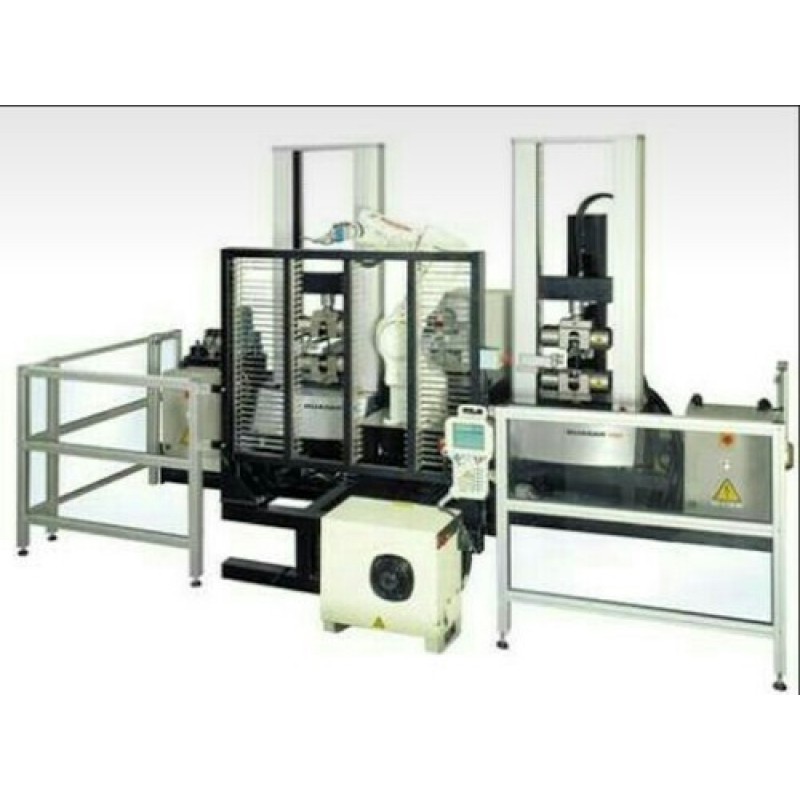

Box Loading Test Apparatus

Product Details :

• Tje Machine AsPre IS:16098 for DWC Pipe
• Box Loading Test Apparatus
• Make: D.S.P.
• Model:-Cont. Manual
• Technical Specifications:-
• Load capacity :0 to 100 kn
• Resolution/Accuracy:-0.01 kn
• Frame capacity:-150 kn
• Gravel filled Box Size: 1500 X 1600 mm
• Compressor Loading Equipment: 100 K.N.±2 K.N. With (Digital Display)
• Hot Water Chamber : upto 900C
• Accuracy: 0.10C
• Cold Chamber :100C
• Accuracy: 0.10C
• Water Flow Rate (Digital Display): 35±3
• Operating System: Manual
• Floor table mounting: floor mounting
• Test zones:-1
• Number of columns:-2
• Column colour:-natural
• Base material:-mild steel
• Base finish:-prep rimed, top powder ash coat paint
