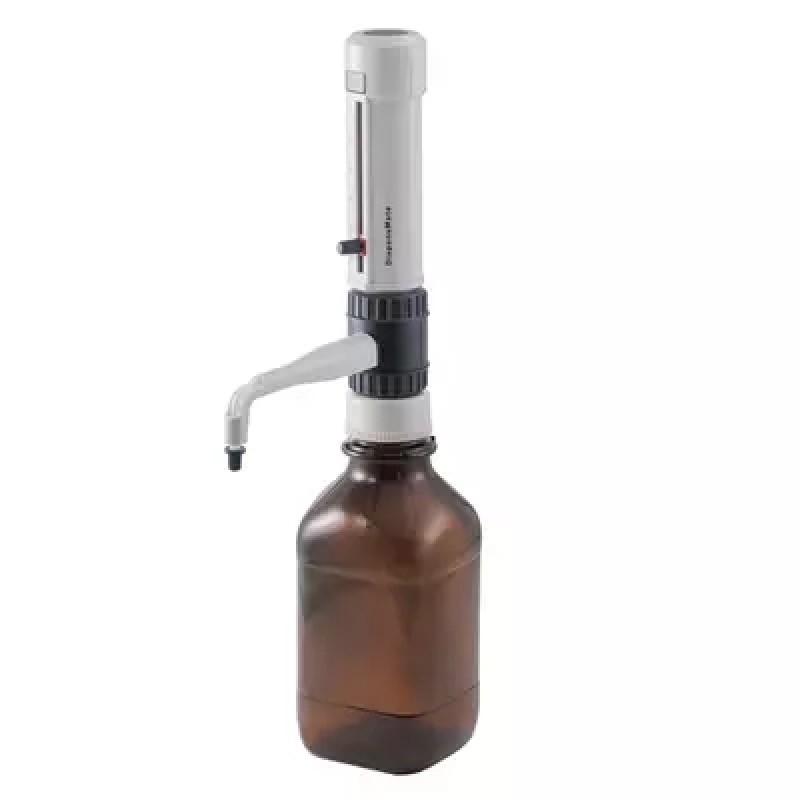

Bottle-top Dispenser

Product Details :

Bottle-top dispenser with recirculation valve for priming to reduce chemical loss and avoid splashing

FEATURES

● Excellent chemical resistance

● Fully autoclavable at 121°C

● Made of PTFE, FEP, BSG, PP

● 4 range of bottle-top dispenser cover a volume range from 0.5 mL to 50mL

● Easy to clean and maintain

● The optional flexible discharge tube with safety handle permits fast and precise dispensing

● Vapor pressure Max. 500mbar, viscosity max. 500mm²/s, temperature max. 40 degree, density max. 2.2g/cm³

● 5 adapters of 45/40mm, 45/32mm, 45/38mm, 32/25mm, 32/28mm are supplied with the dispenser

Code	Volume Range	Graduation	A ≤±		CV ≤
TD-BD-01	0.5-5mL	0.1mL	0.5%	25μL	0.1%	5μL
TD-BD-02	1.0-10mL	0.2mL	0.5%	50μL	0.1%	10μL
TD-BD-03	2.5-25mL	0.5mL	0.5%	125μL	0.1%	25μL
TD-BD-04	5.0-50m	1mL	0.5%	250μL	0.1%	50μL

Bottle-top Dispenser
