Blotting System

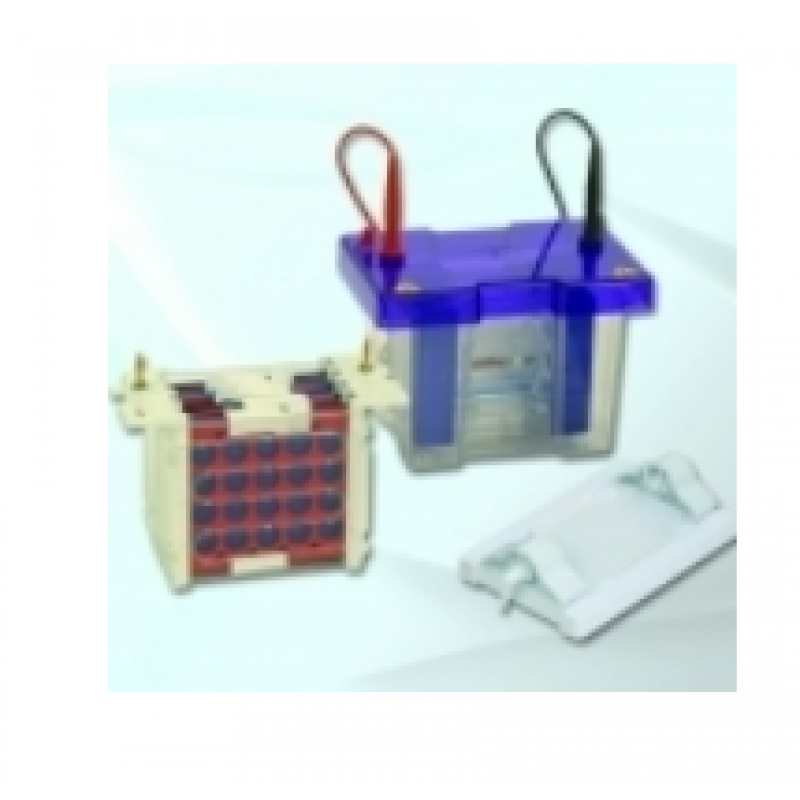

The omniPAGE Mini electroblotting system allows PAGE and blotting to be performed using the same universal tank and lid. Interchangeable modules dedicated to PAGE or blotting facilitate simultaneous transfer of up to four 10x10cm gels.Features include:• Transfer capability for up to four 10x10cm gels in as little as an hour; low-intensity transfers may also be performed overnight.• Platinum-wire electrodes 8cm apart generate a powerful electric field for efficient transfer; an optional plate-electrode insert is available for rapid 2-gel transfers.• Cool pack which, when frozen an hour before use, slots conveniently into the tank to provide a low-cost, efficient heat sink during fast high-intensity transfers.• Open design, rigid cassettes maximise current transfer and eliminate ‘shadow band’ formation; colour-coded to ensure proper orientation within the blotting system.

omniPAGE Mini Wide and Maxi Complete Electroblotting SystemsThe omniPAGE Mini Wide and Maxi electroblotting systems share the same features as the omniPAGE Mini, to facilitate simultaneous transfer of up to three 20x10cm Mini Wide and 20x20cm Maxi gels respectively.
