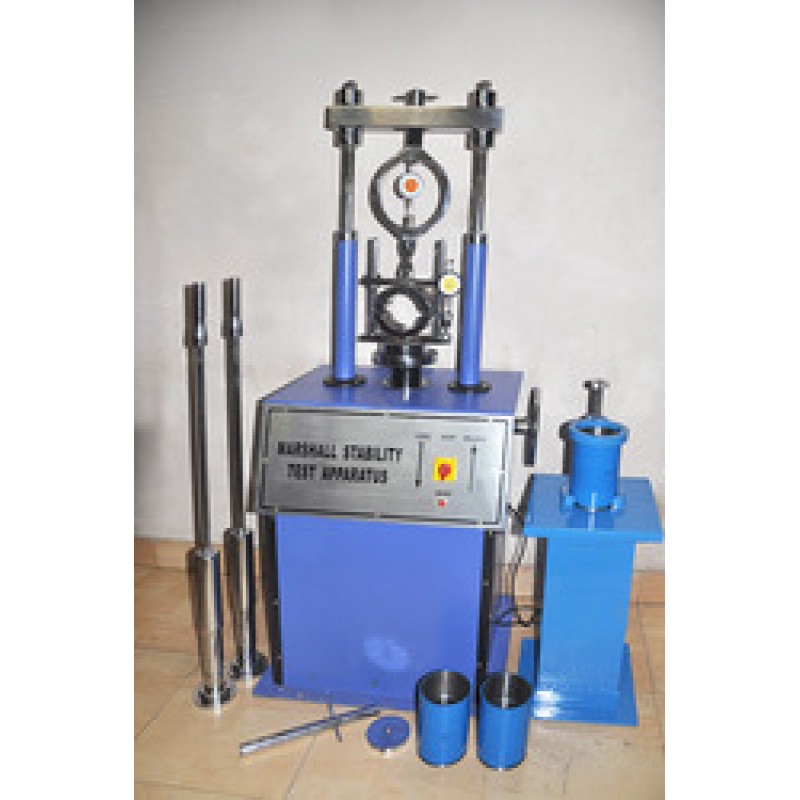

Stability Testing Machines

Product Details:

Keeping in sync with the ever-changing demands of the customers, we have been able to provide the customers with performing Stability Testing Machines. Designed using high-grade components, the range is widely used for testing & determining optimum binding content for varied bitumen mixes. Also, the range is used for designing & evaluating designing and evaluating bituminous paving mixes through marshall method.

The offered apparatus consists of:

• Load frame

• Hand wheel
• Limit switches
• Indicator lamps
• Two telescopic pillars
• Adjustable cross head
• On-off reversing switch
• Loading unit with a motorized capacity of 5000 kgf
• 1 no. breaking head assembly with fixing flow meter
• 1 no. compaction pedal with specimen mold holder
• 2 no. compaction hammer weighing 4.5 kg weight and free fall 45.7 cm
• 3 no. specimen mold of dimension 10.16 cm x 7.6 cm with base plate & extension
