Rajco Film Stripping Device

Product Details:

Minimum Order Quantity	1 Unit
Voltage	230 Volts
Frequency	50 Hz
Phase	Single Phase
Brand	Rajco
Sieve Size	9.525 Mm
Rotating Speed	100 RPM

Bituminous Mixer To Stripping Of The Asphalt From Rock Particles
And Is Generally Used To Evaluate The Mineral Aggregate.
It May Be Used To Judge The Adhesive Capacity Of Bituminous
Material. Stone Screening For Use With Seal Coats Open Graded
Mixes Are Usually Subjected To This Test. The Test Is Applied To
The Aggregate Fraction Passing The 9.525 Mm Sieve And Retained
On No. 8 Sieve.

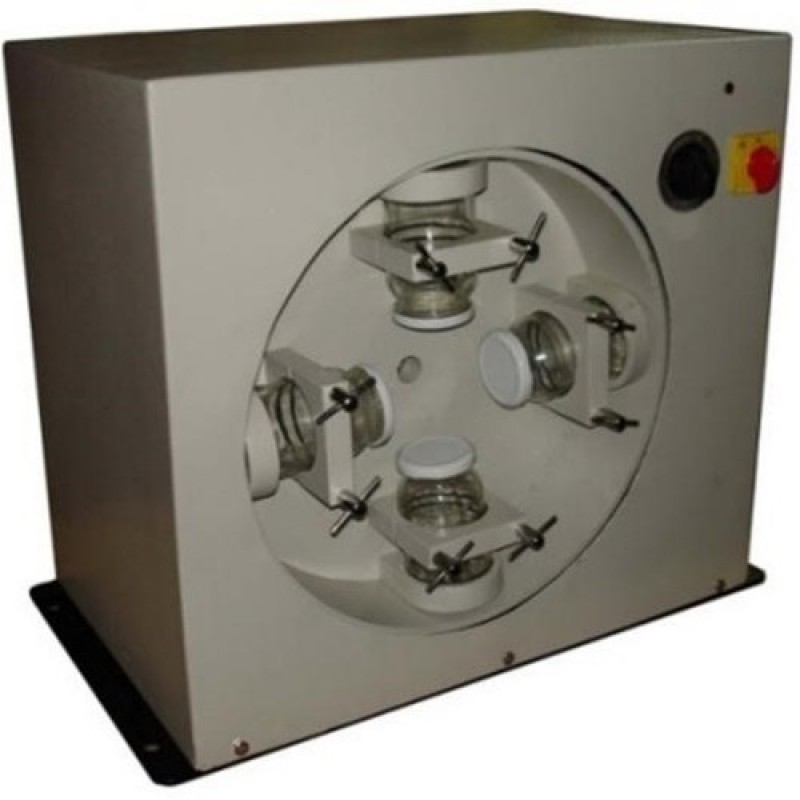

The Film Stripping Device Consists Of A Disc Of Which Four Bottles
Are Mounted. The Disc Rotated At The Rate Of Approximately
100 R.p.m A Time Switch Is Provided.
Suitable For Operation On 230 Volts, Single Phase, A.c. Supply.
The Sample Is Kept In Bottles And Agitates For Fifteen Minutes
The Percentage Of Aggregate Stripped Is Then Estimated By
Visual Observation.
