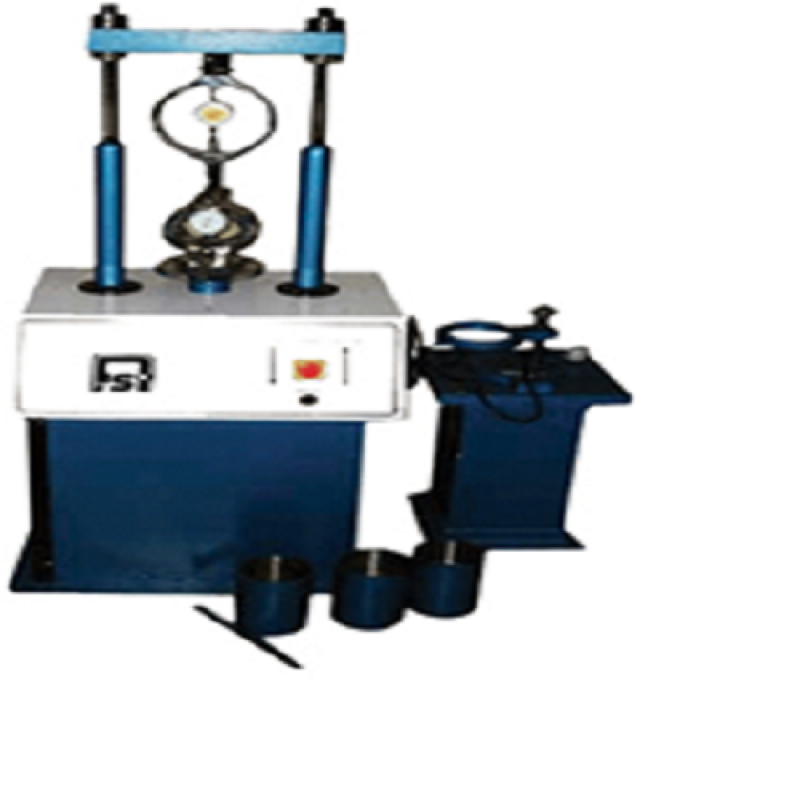

Marshell Stability

SPECIFICATION:-

CBR TESTING MACHINE OF SUB GRADE AND SUB BASE CBR Mould of 150 mm IS x 175 mm high with clamping lugs completed with extension collar and perforated base plate made of gun metal. A cutting collar to fit mould body. A penetration piston assembly of 50 mm diameter and a bracket for the dial gauge. A perforated swell plate of 148 mm diameter with an adjustable stem and lock nut Displacer Block of 148 mm diameter x 47.7 mm diameter high complete with a removable T handle. A metal tripod for the dial gauge. Surcharge weight annular 2.5 kg. 147 mm diameter Proving ring 10 kN capacity .002 mm dial gauge with calibration certificate Dial gauge 0.01 mm x 25 mm travel Rammer 2.6 Kg weight With a drop of 310 mm. Rammer 4.9 Kg with weight with a drop of 410 mm. Annular Metal Weight 2.5 Kg, 147 mm dia with 53 mm dia central Hole Annular Metal Weight 5 Kg, 147 mm dia with 53 mm dia central Hole
